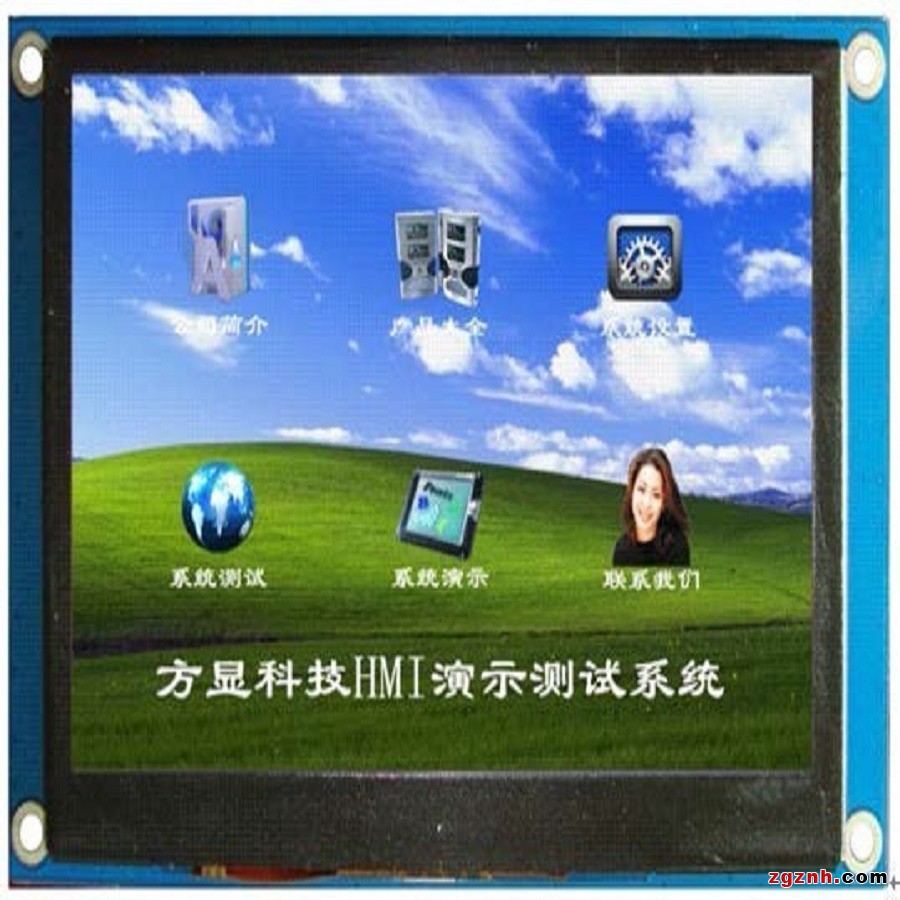

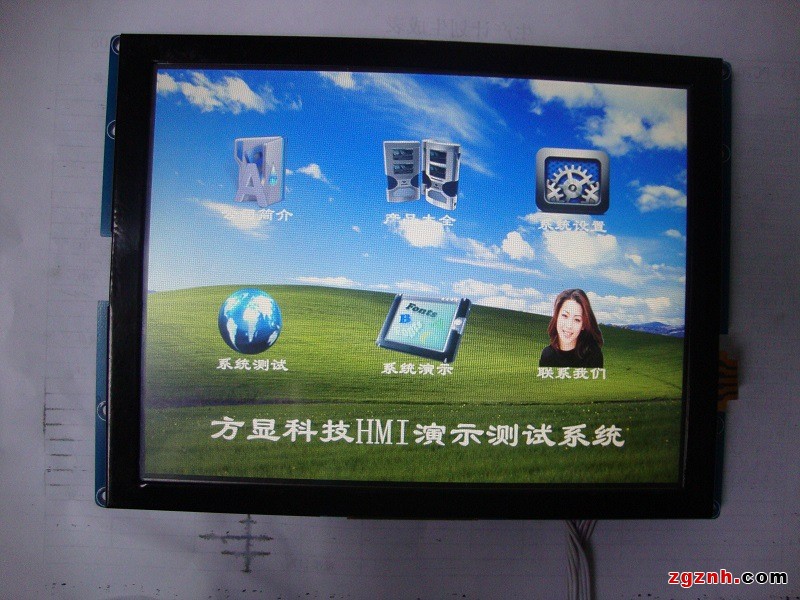

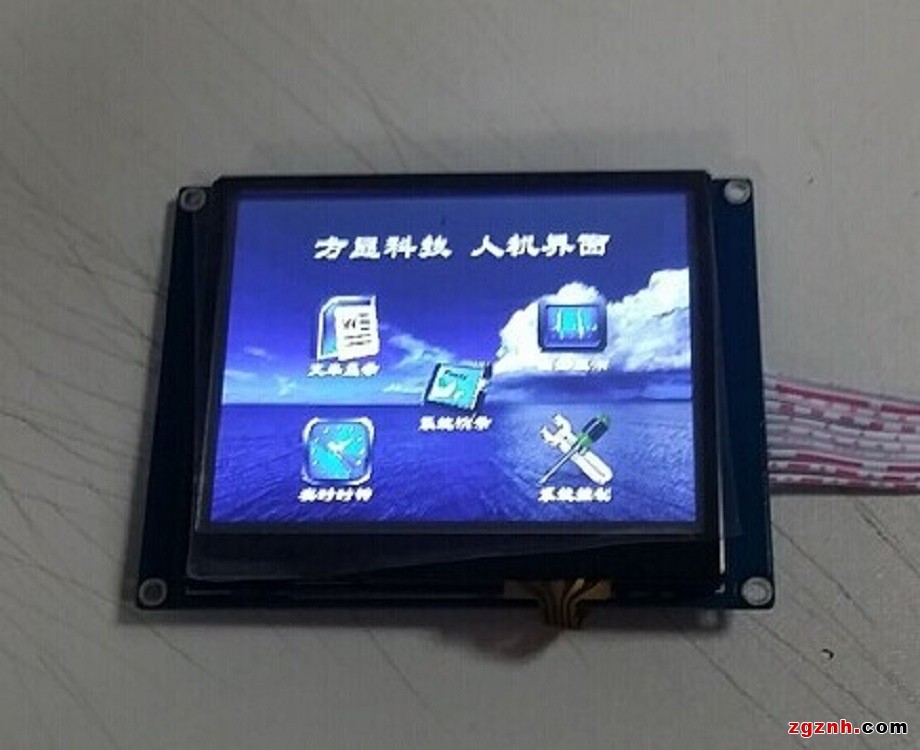

厂家直销VFD荧光屏7寸人机界面256色原装液晶屏热压软带串口屏

AT070TN94 基本参数制造商(Productor)产品型号(MODEL)屏尺寸(Size)分辨率(Resolution)分辨率简称(Resolution Name)显示比例(Display scale)像素排列(Pixel Arrangement)点距(Pixel Pitch)产品组成(Panel Composition)面板类型(Technology)主要用途(Applications)显著特征(Panel Features)AT070TN94光电参数显示模式(Display mode)亮度(Luminance)对比度(Contrast Ratio)颜色(Color)色彩饱和度(Color Saturation)响应时间(Response)可视角度(Viewing Angle)最佳视角(The Best View)白场色度(White Field Chroma)白场变动(White Field Dynamic)反转扫描(Reverse Scan)信号类型大类(The kind of Singnal)接口类型(Interface)信号接口定义(Singnal Interface Definition)驱屏电压(Drive-screen voltage)面板输入电流(Input Current)信号接口类型(Kind of Singnal Interface)信号接口品牌(Brand of Singnal Interface)信号接口脚距(Pitch of Singnal Interface)信号接口数量(Quantity of Singnal Interface)信号接口脚数(Pin of Singnal Interface)AT070TN94结构参数工作温度(Operation Temperature)存储温度(Storage Temperature)表面处理(Surface Technology)显示区域(Active Area)可视区域(Display Area)外形尺寸(Outline)触摸屏(Touch Panel)灯管位置(Lamp Position)背光类型(Backlight)灯管数量(Lamp Number)灯管形状(Lamp Shape)背光寿命(Life Time of Lamp)单一灯管电压(Voltage of Lamp)单一灯管电流(Current of Lamp)内置灯管驱动器(Driver of Backlight)背光接口类型(Kind of Backlight Interface)背光接口品牌(Brand of Backlight Interface)背光接口数量(Quantity of Backlight Interface)背光接口脚距(Pitch of Backlight Interface)背光接口定义(Backlight Interface Define )AT070TN94包装及生产状态每箱数量(Quantity Per Box)包装箱尺寸(Size of the Box)包装箱毛重(G.W. of the Box)开始量产时间(Date Begin Producing)当前生产状态(Production Status)

群创/Innolux

AT070TN94

7.0"

800×480

WVGA

16:9

RGB垂直条状

0.0642×0.1790 mm

液晶屏,

a-Si TFT-LCD

【便携式DVD】, 【车载显示】,

【灰阶可选】, 【白光LED】, 【翻转显示】, 【雾面】, 【宽温】,

TN，常白显示，透射式

400 nits

500:1

262K/16.7M

50%NTSC(CIE1931)

10/15 (Tr/Td) ms

50/70/70/70(上/下/左/右)

6 o'clock

X:0.310; Y:0.330

1.33 (9 points)

翻转 (水平/垂直)

Parallel

Parallel

DRGB-50P1C8B-115A

3.3/10.4/16.0/-7.0V (VCC/AVDD/AVDD/VGL)

4/2/0.2/0.2mA (ICC/IAVDD/IGH/IGL)

包含在屏信号接口中

FPC

0.5 mm

1 pcs

50 pins

-30 °C ~ 85 °C

-30°C ~ 85°C

雾面

154.08×85.92 mm

156.7×89.1

164.90× 100.00×5.70 mm

无

侧入式光源

WLED

3S9P pcs

阵列

20K Hours

9.3V

180mA

无

包含在屏信号接口中

Includedinsignalinterface

1 pcs

0.5 mm mm

DRGB-50P1C8B-115A

50 pcs

530×355×255 mm (长×宽×高)

10.682 Kg

2009/12/2
