R1450B1 Servo Drive Battery Holder / Dedicated Battery Holder for Absolute Encoders, Without Superca

R1450B1 Servo Drive Battery Holder / Dedicated Battery Holder for Absolute Encoders, Without Supercapacitor (Complete Assembly)

Technical Specification

Product Model: R1450B

Product Category: Battery holder for servo absolute encoders

1. Scope of Application

This battery holder is designed for batteries used in absolute encoders of domestic Chinese servo motors.

2. Reference documents

If there is any inconsistency between this specification and product drawings, the product drawings shall prevail. If there is any inconsistency between this specification and related reference documents, this specification shall prevail.

3. Requirements

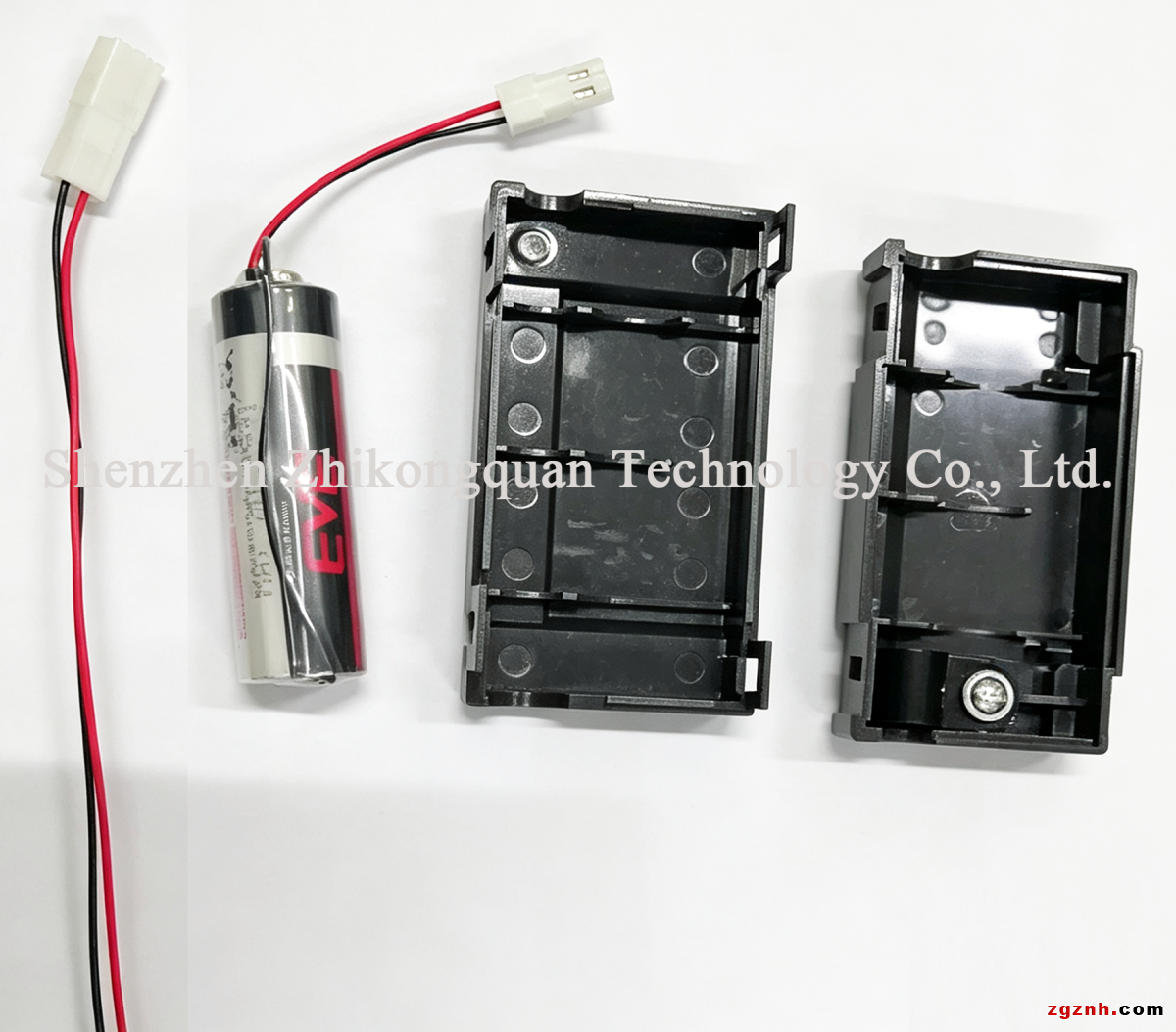

3.1 Design and Structure

3.2 Materials and Surface Treatment

A. Terminals: imported, crimp type

B. Housing: Flame retardant

C. Nut: Iron material, nickel electroplating finish

D. Retaining clip: Black

3.3 Electrical Performance

A. Rated Current: 0.5A AC/DC

B. Rated Voltage: 40V AC/DC

C. Contact Impedance: Max. 30mΩ

D. Insulation Resistance: Min. 10MΩ

E. Battery Voltage: 3.6V

3.4 Other Technical Parameters

A. Operating Temperature Range: -20℃ ~ +80℃ (including temperature rise generated during operation)

3.5 Performance Requirements and Test Conditions

The product shall comply with all electrical, mechanical and environmental requirements. Unless otherwise specified, all tests shall be performed at room temperature.

4. Packaging

Individually packed in PE bags, complete with accessories as shown in the drawing.

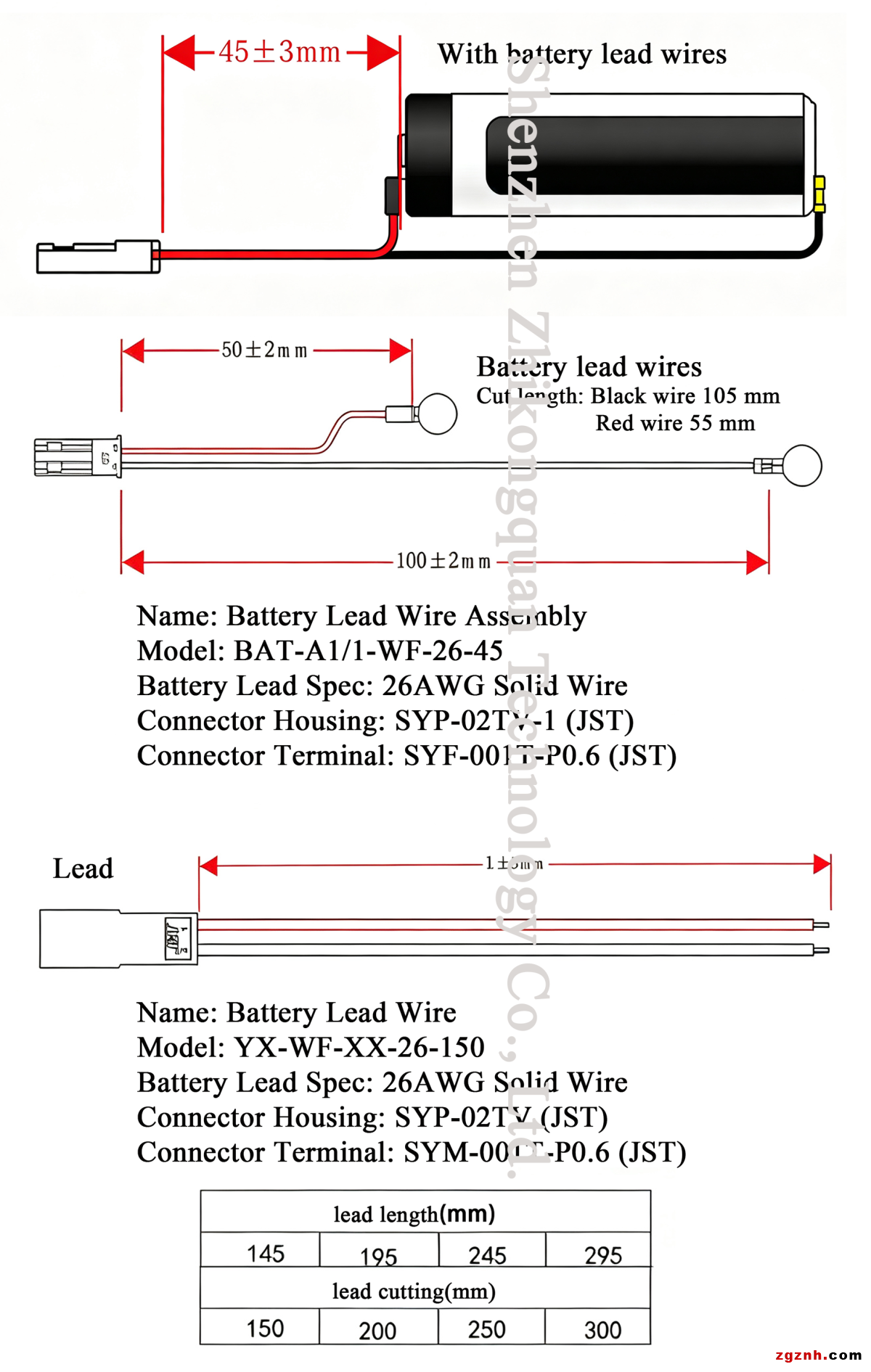

5. Lead Wire Specifications and Dimensions

Industry Terminology Notes

6 Outer Packaging

Cartons may be used for outer packaging, and relevant test reports shall be provided.

7 Storage

Packaged products shall be stored in a pollution-free environment with a temperature range of -10℃ ~ +40℃ and relative humidity no more than 80%.

8 Transportation

Moisture protection, resistance to severe vibration and heavy compression shall be ensured during transportation to guarantee product quality.

The product has obtained transportation hazard identification certificates for sea and air transport.

Related Products

R1450A: Servo Drive Battery Holder / Complete Dedicated Battery Holder for Absolute Encoders

R1450A1: Servo Drive Battery Holder / Complete Dedicated Battery Holder for Absolute Encoders with Adapter Board

R1450B: Servo Drive Battery Holder / Complete Dedicated Battery Holder for Absolute Encoders with Supercapacitor

R1450B1: Servo Drive Battery Holder / Complete Dedicated Battery Holder for Absolute Encoders without Supercapacitor
