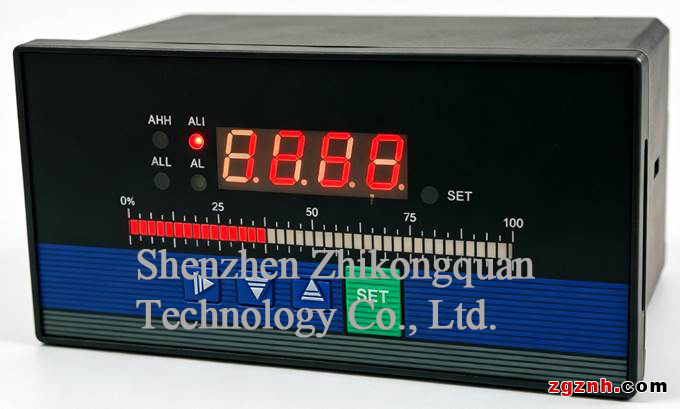

YM-T803 Series (Horizontal Type)

Overall dimension: 160×80×140mm

Cutout dimension: 152.0⁺⁰·⁷ × 76.0⁺⁰·⁷ mm

Weight: 400g

YM-T803 (Horizontal Type) LED Digital Display Controller / Bar Graph Display Controller / Intelligen

Prices in the link are for reference only. Contact the staff at the end of the article for exact pricing.

We accept OEM customization as well as ODM development,

design and manufacturing services.

Specifications:

● Measurement Accuracy: ±0.2%FS ±1 digit or ±0.5%FS ±1 digit

● Resolution: ±1 digit

● Measuring Range: -1999 ~ 9999 digits

● Display Mode:

· Process value display: -1999 ~ 9999

· Set value display: -1999 ~ 9999

· LED status indication

● Control / Alarm Mode: Hysteresis high-limit or low-limit alarm (freely configurable by user)

● Control Accuracy: ±1 digit

● Temperature Compensation: Digital automatic temperature compensation, 0～50℃ ● Print Control: Compatible with various serial printers (e.g. LQ-3000K, TPuP series miniature printers); print interface: RS-232C

● Printing Accuracy: Consistent with instrument accuracy

● Parameter Setting:

· Numeric setting via panel touch keys

· Permanent storage of set parameters after power-off

· Password lock for parameter settings

● Protection Functions:

· Input break alarm (for thermocouple / RTD inputs) with LED indication for relay output status

· Over-range / under-range input alarm

· Automatic reset upon power undervoltage

· Automatic reset for abnormal operation (Watchdog)

Features:

● Adopts highly integrated IC chips, advanced SMT surface mount technology and unique circuit shielding technology. The instrument features excellent anti-interference performance and high reliability, capable of long-term stable operation under electromagnetic interference environments.

● Universal input design without jumper settings. Various thermocouple/RTD graduation codes, standard signals, remote pressure signals and millivolt signals can be configured simply and quickly by parameter setup on each unit.

● Modular universal circuit architecture. Different instrument functions can be realized via easy module combination, greatly improving universality and flexibility.

● Microprocessor-controlled fully automatic digital calibration system; potentiometer adjustment is not required.

● Elegant appearance, available in multiple outline dimensions.

● Snap-in structure for both complete unit and internal core assembly, facilitating easy installation, removal and maintenance.

● Optional power supply: AC 220V, 50/60Hz; 90～265V switching power supply; or DC24V power supply.

● Equippable with RS-232 / RS-485 or RS-422 communication interfaces, convenient for connection with host computers to build control systems.

Operating Environment:

● Ambient Temperature: 0～50℃

● Relative Humidity: ≤85%RH, avoid strongly corrosive gas

● Supply Voltage:

DC24V ±2V switching power supply

Standard type · AC220V +10/-15% (50Hz ±2Hz)

Special type · AC90 ~ 260V switching power supply

● Power Consumption:

· ≤6W (powered by AC220V linear power supply)

· ≤6W (powered by AC90V～265V switching power supply)

· ≤6W (powered by DC24V power supply)

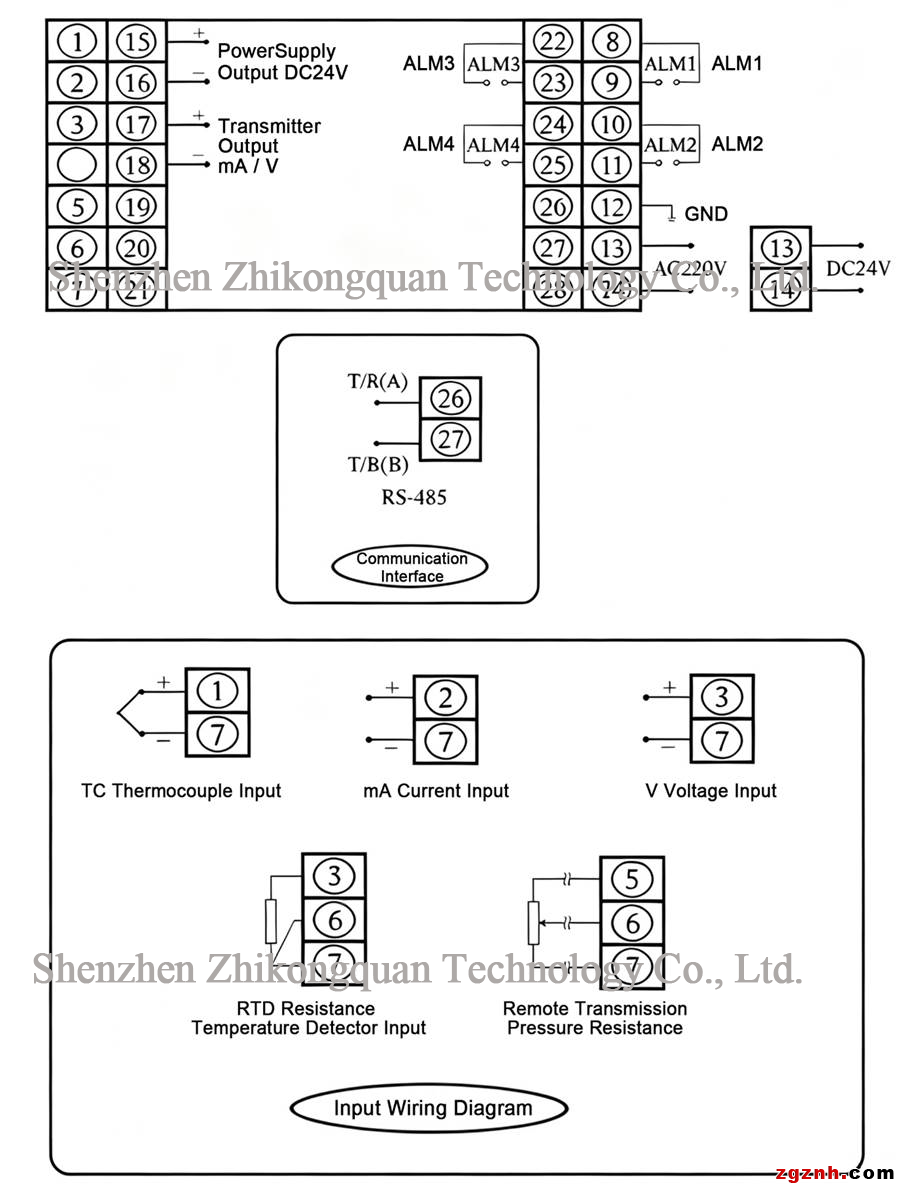

Input Signals:

● Analog Signals

· Thermocouples: Standard thermocouples – B, S, K, E, J, T, WRe3-WRe5, etc.

· Resistance signals: Standard RTDs – Pt10, Pt100, Cu50, Cu100, and remote transmission pressure resistors

· Current signals: 0～10mA, 4～20mA, 0～20mA, input resistance ≤250Ω

· Voltage signals: 0～5V, 1～5V, mV signals, input impedance ≥250KΩ

● Digital Signals

· Pulse signals: Waveform – Square wave, sine wave or triangular wave  

· Amplitude – More than 4V (customizable as user required)

· Frequency range – 0～5kHz (customizable as user required)

· Contact signals: Electric contact input signals

Output Signals:

● Analog Output

· DC 0～10mA (load resistance ≤750Ω)

· DC 4～20mA (load resistance ≤500Ω)

· DC 0～5V (load resistance ≥250Ω)

· DC 1～5V (load resistance ≥250Ω)

● Digital Output

· Relay control output – Relay ON/OFF with hysteresis

· Solid State Relay output – SSR control signal output, 6～24V/30mA

· Bidirectional thyristor output – TRIAC output, 5A/400V

● Communication Output

· Interface type – Standard serial bidirectional communication interfaces: RS-485, RS-232C, RS-422, etc.

· Baud rate – Freely configurable internally within 300～9600bps

· Transducer power supply output – DC 24V, maximum load ≤30mA

Communication Mode:

Control Output Mode:

SSR – Solid State Relay trigger control output; SOT – TRIAC bidirectional thyristor output

Transmitter Output Mode:

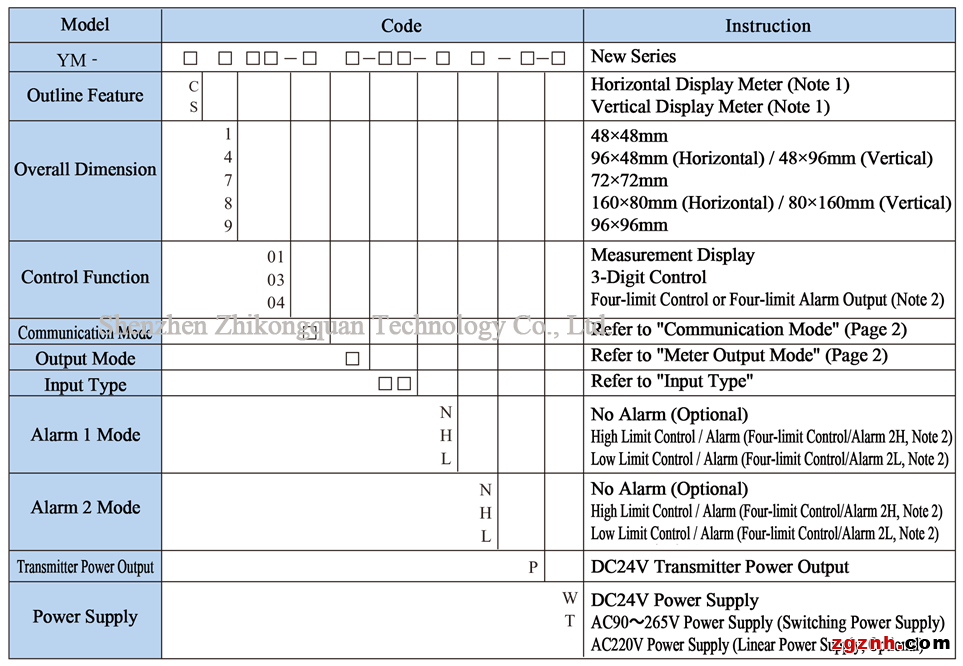

YM-T803 LED Digital Display Controller / Bar Graph Display Controller / Smart Instrument Model List:
