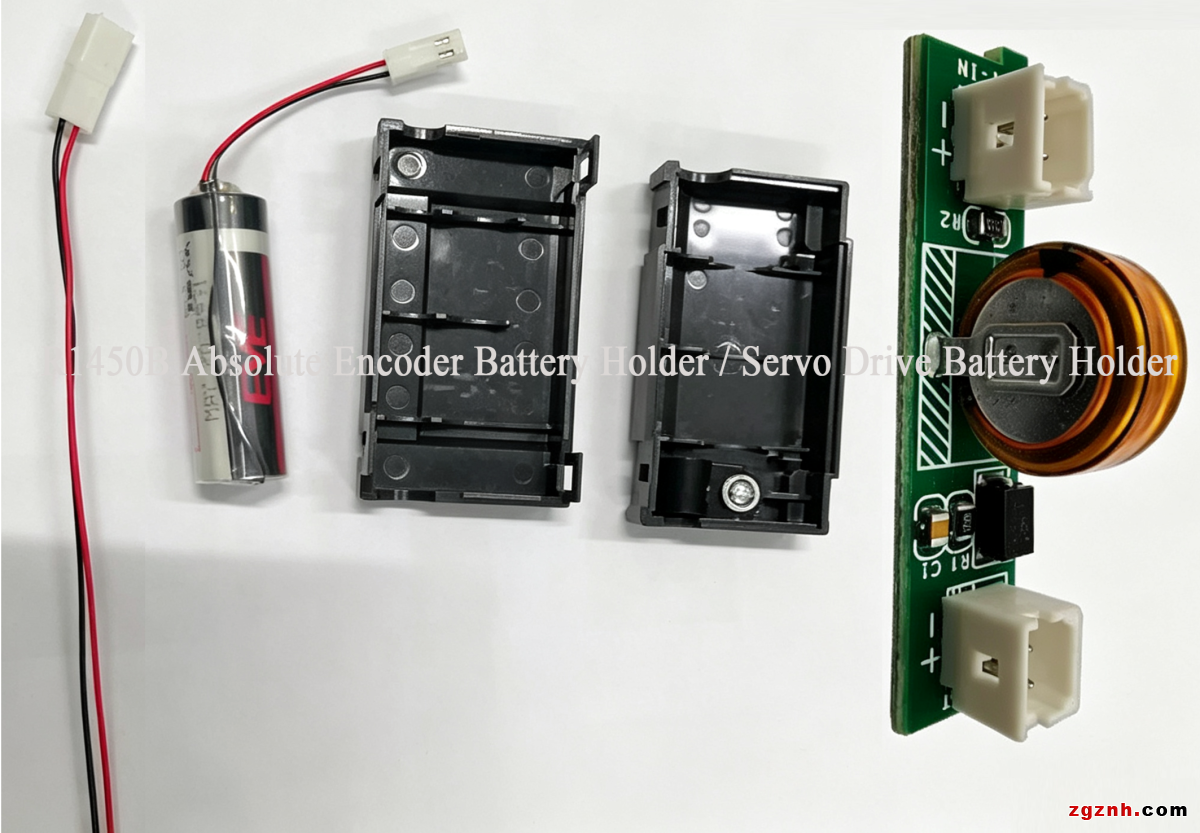

R1450B Absolute Encoder Battery Holder / Servo Drive Battery Holder (With Supercapacitor)

Technical Specification

Product Model: R1450B

Product Type: Battery holder for servo absolute encoders

1. Scope of Application

This battery holder is designed for batteries used in absolute encoders of domestically manufactured servo motors in China.

2. Reference documents

If there is any inconsistency between this specification and product drawings, the product drawings shall prevail. If there is any inconsistency between this specification and other reference documents, this specification shall prevail.

3. Requirements

3.1 Design and Structure

3.2 Materials & Surface Finishing

A. Terminals: imported, crimp type

B. Housing: Flame retardant

C. Nut: Iron material, nickel electroplated

D. Retaining clip: Black

3.3 Electrical Characteristics

A. Rated Current: 0.5A AC/DC

B. Rated Voltage: 40V AC/DC

C. Contact Impedance: Max. 30mΩ

D. Insulation Resistance: Min. 10MΩ

E. Battery Rated Voltage: 3.6V

3.4 Other Technical Parameters

A. Operating Temperature Range: -20℃ ~ +80℃ (including temperature rise generated during operation)

3.5 Performance Requirements & Test Conditions

The product shall comply with all electrical, mechanical and environmental requirements. Unless otherwise specified, all tests shall be performed at room temperature.

4. Packaging

Individually packed in PE bags, complete with all accessories as shown in the drawing.

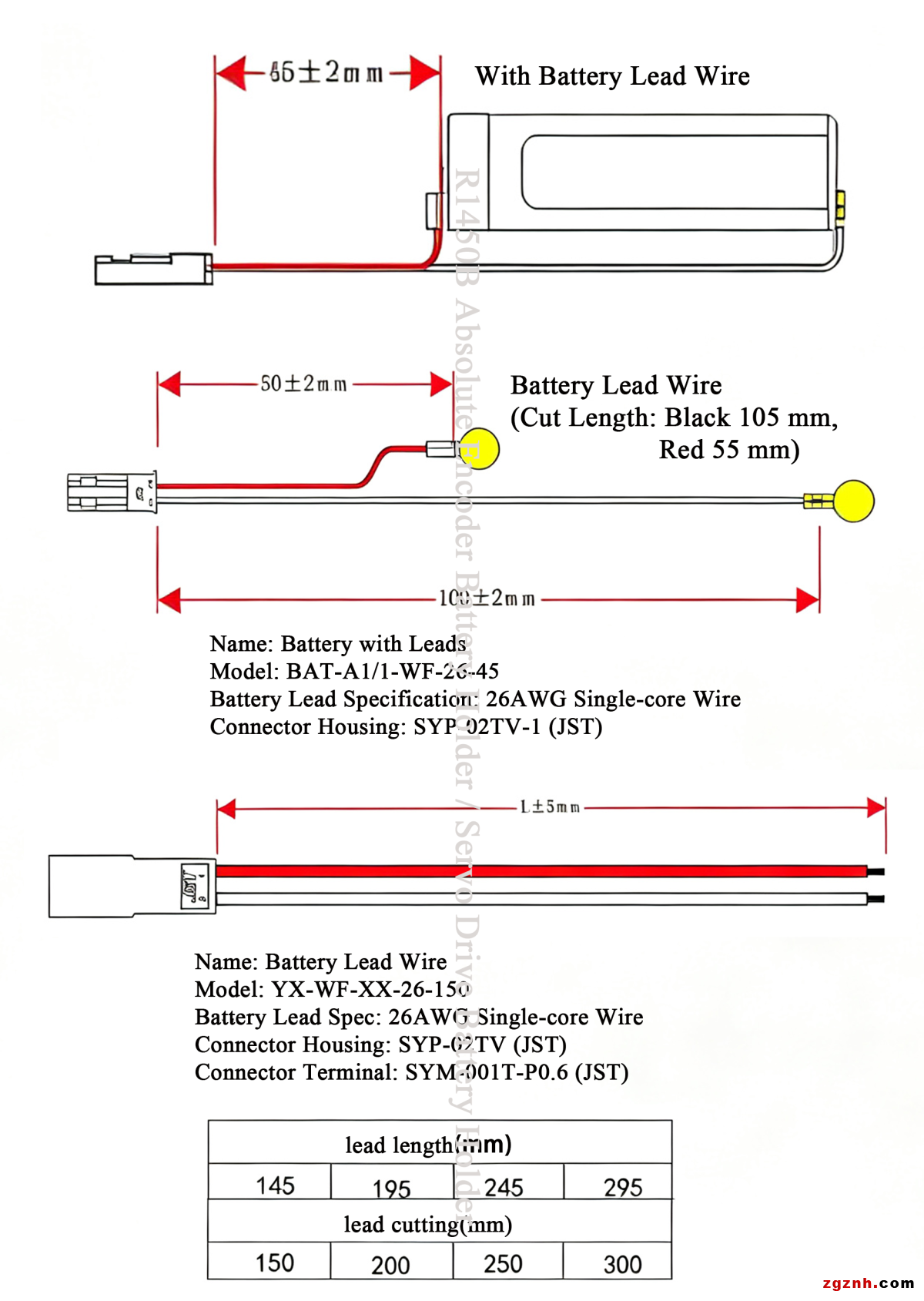

5. Lead Wire Specifications & Dimensions

6. Outer Packaging

Cartons may be used for outer packaging, and relevant test reports shall be provided.

7. Storage

Packed products shall be stored in a pollution-free environment with temperature ranging from -10℃ to +40℃ and relative humidity no higher than 80%.

8. Transportation

Moisture protection, resistance to severe vibration and heavy compression shall be ensured during transportation to guarantee product quality.

The product has obtained Transportation Hazard Identification Certificate (for sea and air transportation).

Related Products

R1450A: Servo Drive Battery Holder / Complete Battery Holder for Absolute Encoder

R1450A1: Servo Drive Battery Holder / Complete Battery Holder for Absolute Encoder with Adapter Board

R1450B: Servo Drive Battery Holder / Complete Battery Holder for Absolute Encoder with Supercapacitor

R1450B1: Servo Drive Battery Holder / Complete Battery Holder for Absolute Encoder without Supercapacitor
