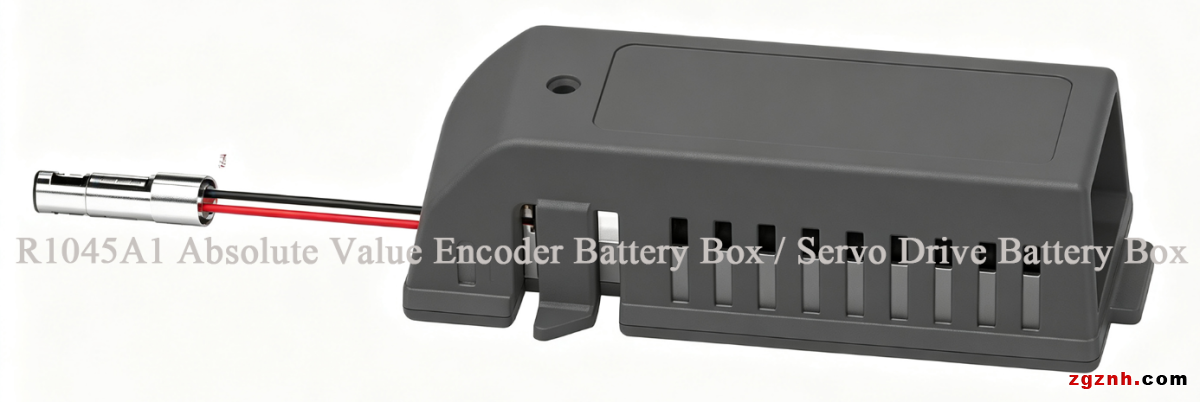

R1045A1 Absolute Value Encoder Battery Box / Servo Drive Battery Box

Model No.: R1045A1

Product Category: Battery Housing (with Battery Cell Included)

1. Scope of Application

This battery housing is applicable to batteries for absolute value encoders of servo motors.

2. Relevant documents

If there is any inconsistency between this specification and the product drawing, the product drawing shall prevail.

If there is any inconsistency between this specification and relevant documents, this specification shall prevail.

3. Requirements

3.1 Design and Structure

3.2 Materials and Surface Treatment

3.2.1 Terminal: Nickel-plated iron, crimped, HRS series

3.2.2 Housing: HRS series

3.2.3 Outer Case: PC blend, flame retardant

3.2.4 base Plate: PC blend, flame retardant

3.2.5 Circuit Board: None

3.3 Electrical Performance

3.3.1 Rated Current: 0.5A AC/DC

3.3.2 Rated Voltage: 40V AC/DC

3.3.3 Contact Impedance: Max. 30mΩ

3.3.4 Insulation Resistance: Min. 10MΩ

3.3.5 Battery Voltage: 3.6V

Recommended Battery Model: EVE ER14505

3.4 Other Technical Parameters

A. Temperature Range: -20℃ ~ +80℃ (including temperature rise generated during operation)

3.5 Performance Requirements and Test Description

3.6 3.6V DC Disposable Lithium Thionyl Chloride (Li-SOCl₂) High Energy Density Carbon Wound AA Size Battery

4. Packaging

Packed with blister shell, label attached.

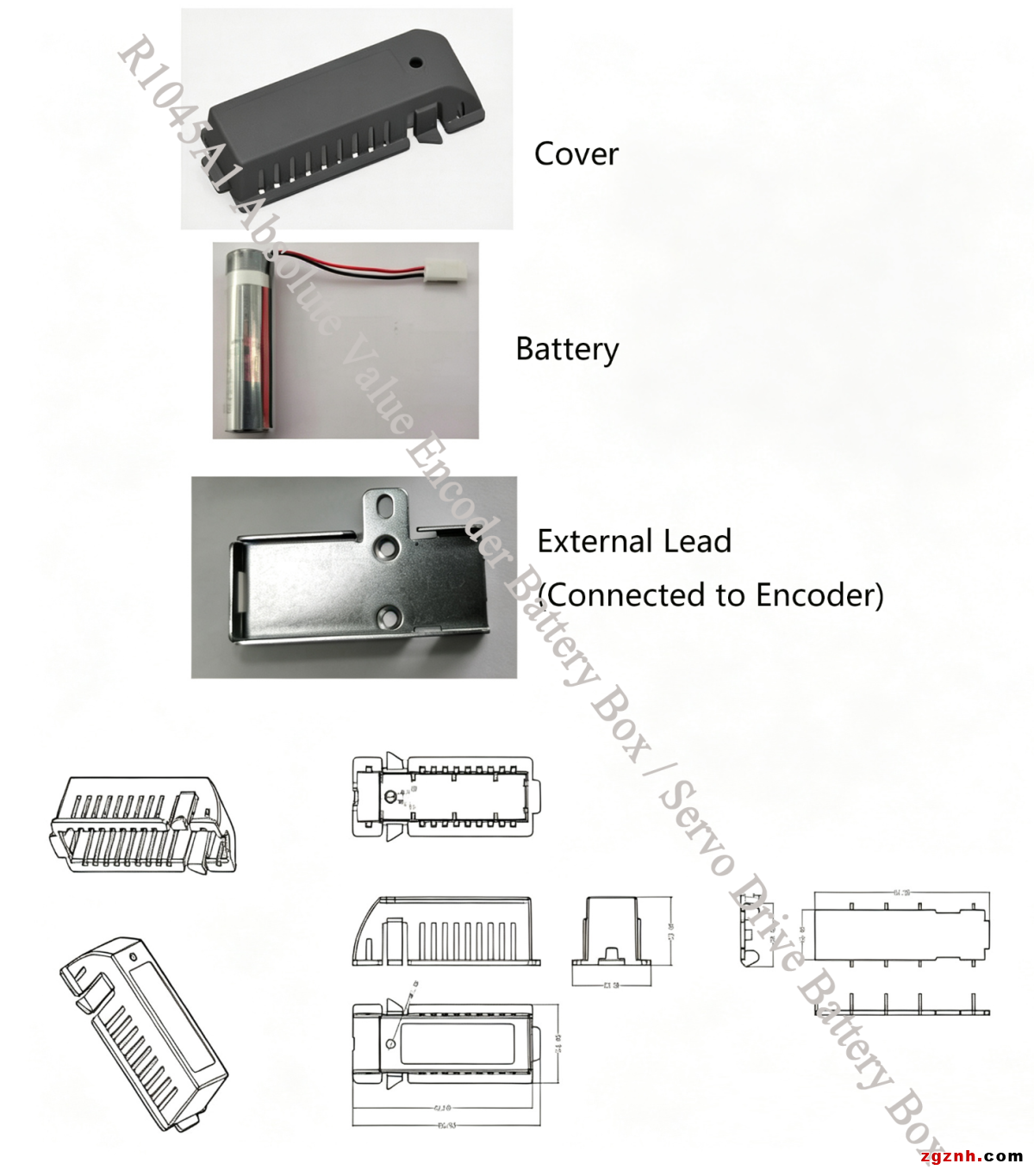

5. Battery Housing Composition

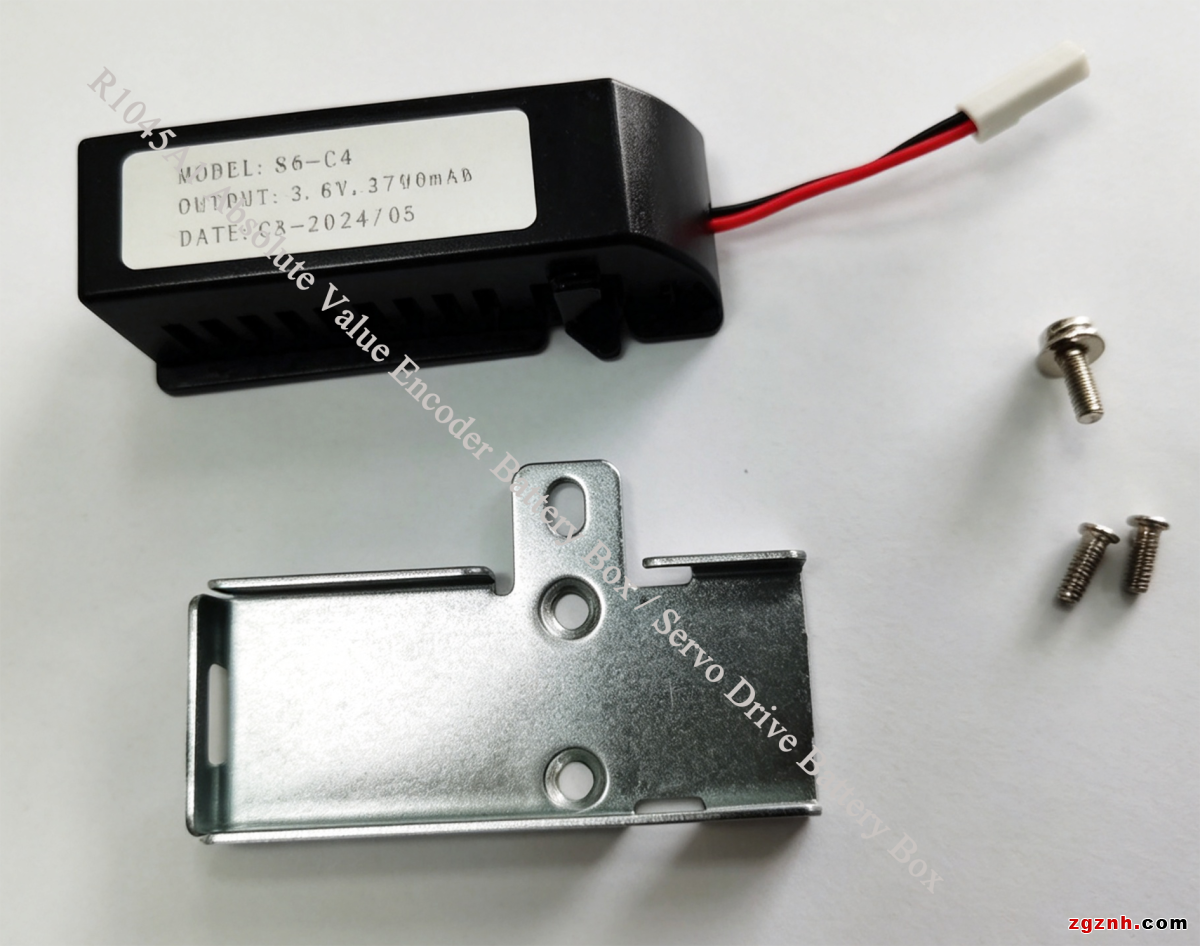

5.1 Outer Case, base Plate, Battery + External Leads (Connected to Encoder)

6. Outer Packaging

Carton boxes are acceptable for outer packaging.

7. Storage

The packaged products shall be stored in a non-polluted environment with a temperature range of -10℃ ~ +40℃ and a relative humidity of no more than 80%.

8. Transportation

During transportation, measures shall be taken to prevent moisture, severe vibration and heavy pressure so as to ensure product quality.

9. Battery Replacement Method

9.1 When the output voltage is lower than the required value, the servo system may trigger an alarm. Replace with a new battery immediately to avoid loss of position data.

9.2 It is recommended to replace the battery while the driver is powered on to prevent the loss of absolute position data.

10. Absolute Battery Housing and Wiring

10.1 Battery Specification

Notes on Use

Please carefully read and comply with the following notes, and use batteries of the specified specifications to prevent product damage and potential safety hazards.

● The installation environment shall be free of moisture, corrosive gas and flammable gas.

● Do not store loose batteries separately to prevent accidental short circuit.

● Short-circuiting the positive and negative poles of a single battery, or reversely connecting the positive and negative poles between different batteries is prohibited.

● Mixing new and old batteries is not recommended. Otherwise, the power of new batteries may be consumed and their service life shortened. It is optimal to replace all batteries with new ones at the same time.

● Do not expose the battery to high temperatures above 100℃ or open flames, as this may cause fire or explosion. This is a disposable primary battery.

● Do not charge the battery, otherwise explosion may occur.

 Do not perform welding directly on the battery surface.

Battery Specification

10.1.2 Battery Housing Specifications

Single-cell battery housing model: R-BOX-1450A1

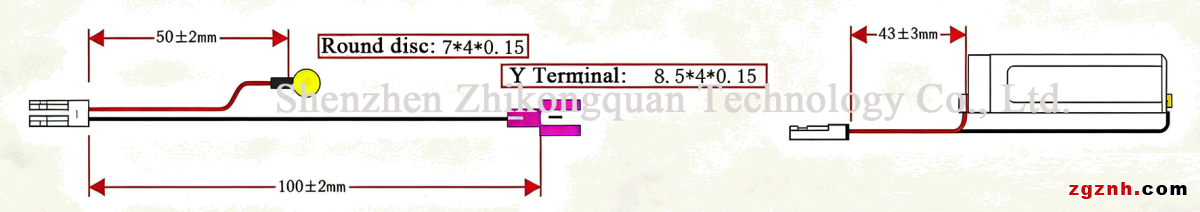

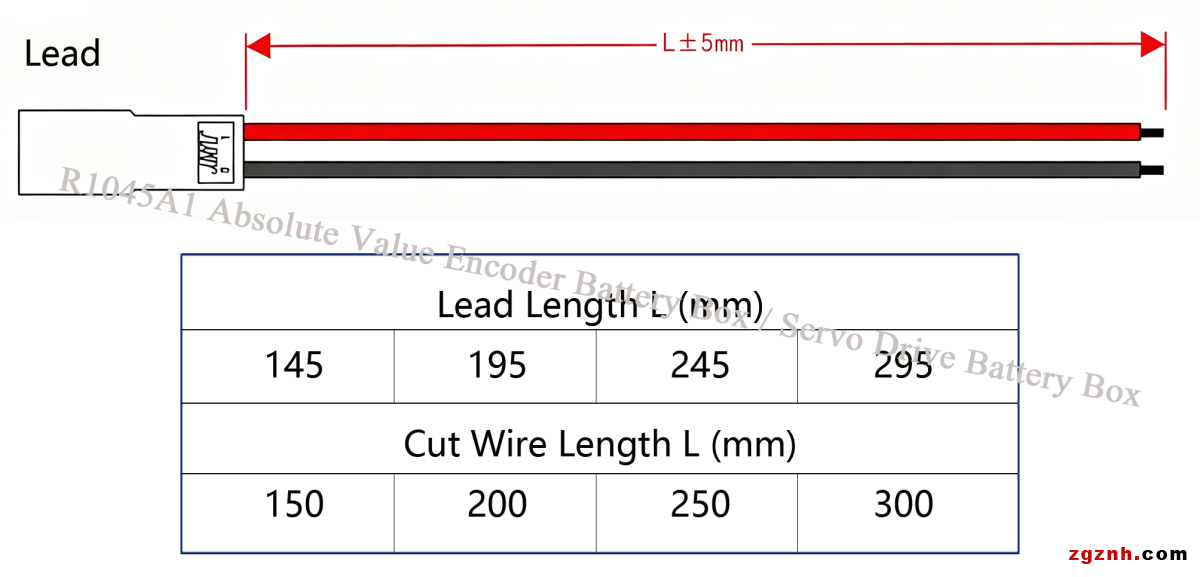

10.1.3 Battery with Attached Lead Wires

Battery assembled with lead wires

Heat shrink tube: Φ2.0 PVC, 105°C, shrink ratio 2:1

The product has obtained the transportation hazard identification certificate (for sea and air transportation).
