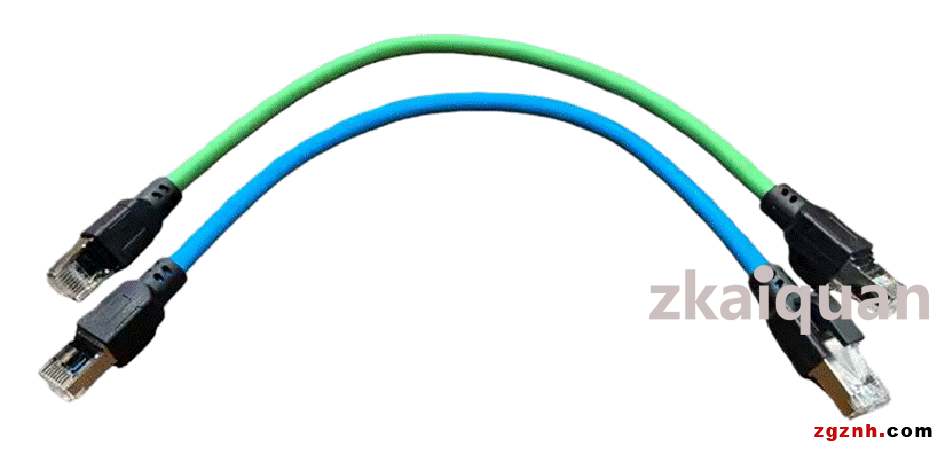

Cat6A Industrial High-flex Cable

Features：

▲ Cat6A Standard

▲ Industrial High Flexibility

▲ Gigabit Double Shielding

▲ Integrated Injection Molding

▲ Stable Communication

▲ Anti-disconnection Design

Supports Profinet, EtherCAT, Ethernet, etc.

Prices in the link are for reference only. Contact the staff at the end of the article for exact pricing.

We accept OEM customization as well as ODM development, design and manufacturing services.

Application Fields：

▲Industrial Automation

▲Intelligent Manufacturing

▲Logistics

▲Intelligent Warehousing

▲Transportation

▲Rail Transit

▲Energy

▲Electric Power

▲Special Industries & Other High-demanding Environments

Description：

• Compatible with Profinet, EtherCAT and Ethernet protocols, matching most servo systems such as Inovance, Delta and other mainstream brands.

• Buckle-type reinforced plug design prevents loosening and disconnection caused by equipment vibration.

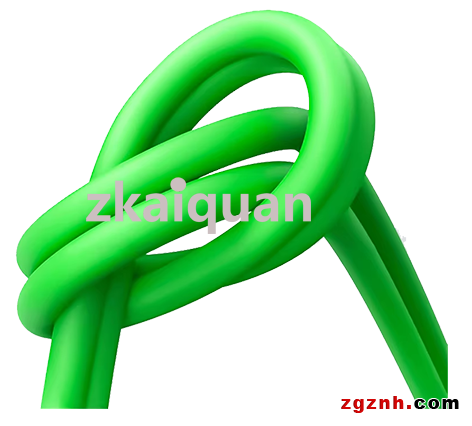

• High-flex PVC outer jacket supports frequent sharp bending, ideal for industrial equipment and scenarios with repeated reciprocating movement.

Product Name & Specification：:

SFTP CAT.6A (26AWG/1Pair + Aluminum Foil) ×4Pairs + 144×0.10mm Tinned Copper Braid, Outer Diameter: 6.4mm, High-flex PVC Jacket, Blue

Number of Cores: (26AWG/1P+AL)*4C+B

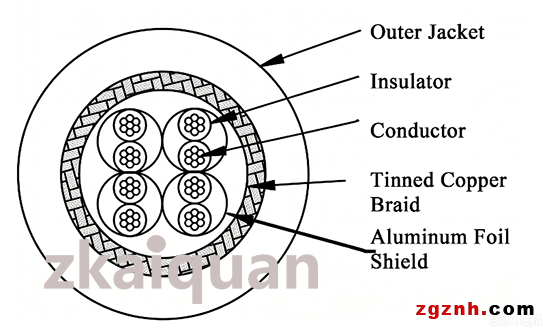

Structure Diagram：

Conductor：

Structure: 7 strands of 0.16±0.008mm

Material: Oxygen-free Copper

Twist Pitch: N/A

Structure: 7 strands of 0.16±0.008mm

Material: Oxygen-free Copper

Twist Pitch: N/A

Insulation：

Material: FM-PE

Finished Outer Diameter: 1.05±0.05mm

Colors: White-Blue, White-Orange, White-Green, White-Brown

Pair Twisting：

Pair Twist Pitch:

White-Blue: 12.3mm; White-Green: 14.1mm;

White-Orange: 16.3mm; White-Brown: 17.8mm

Separation Shield：

Shielding Method: 38μm × 9mm aluminum foil (applied synchronously with twisting)

Shield Coverage: 125%

Inner Jacket：

Material: N/A

Finished Outer Diameter: N/A

Print Marking: N/A

Overall Cabling：

Twist Pitch: 110±10mm

Drain Wire: N/A

Aluminum Foil Specification: 18mm × 25μm

Cotton Paper Separator: N/A

Braided Shield：

Structure: 16 carriers, 9 strands per carrier, 0.10mm tinned copper (TC) wire

Shield Coverage: 90%

Outer Jacket：

Material: 60P blue 3126 high-flex PVC

Finished Outer Diameter: 6.4±0.15mm

Surface Finish: Medium glossy blue surface

Cable Marking Text：

AWM 20276 80℃ 30V CAT.6A SFTP PATCH CORD CABLE 26AWG 4PAIRS VERIFIED TO TIA/EIA 568B.2

Character Height: 2.1mm dot printing

Print Color: Black

Color Specification：

Core Cables: (26AWG/1Pair+Aluminum Foil)×4 Pairs: White-Blue, White-Orange, White-Green, White-Brown

Outer Jacket: Blue

Marking Wheel：

Wheel No.: 26#023

Wheel Type：

Transfer printing

Cutting Length：

Custom length available from 20 cm to 20 meters
