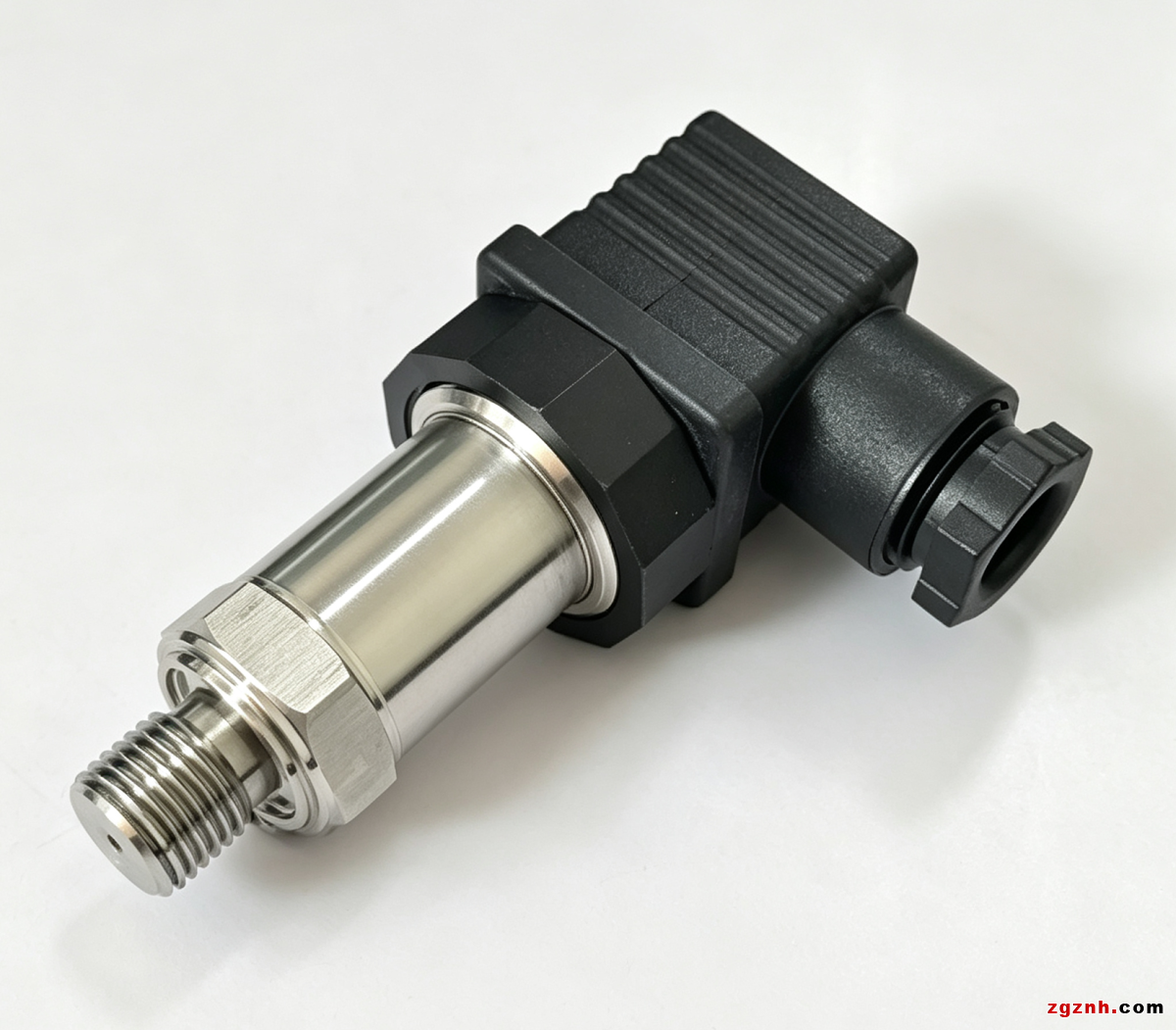

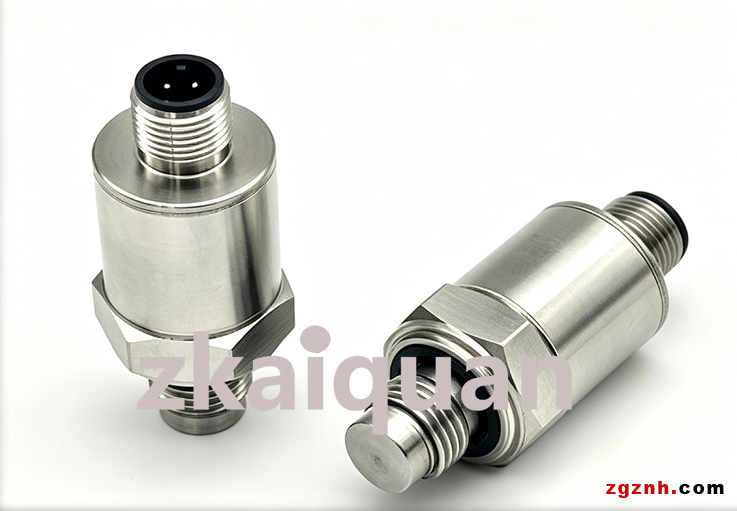

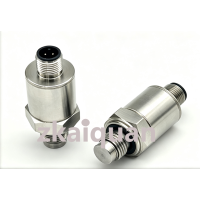

M5300 Series Industrial Pressure Transducer

Prices in the link are for reference only. Contact the staff at the end of the article for exact pricing.

We accept OEM customization as well as ODM development, design and manufacturing services.

SPECIFICATIONS：

• High Accuracy

• Compact

• Variety of Pressure Ports and Electrical  Configurations

• Optional damper

• CE Compliant and Weatherproof

• Gage,Compound

• High Accuracy

FEATURES：

• Heavy Industrial CE Tested

• Integral Pressure Cavity，No leakage

• Reverse Polarity Protection on Input

• Short Circuit Protection on Output

• Up to ±0.25% Accuracy

• Up to ±1% Total Error Band

• Compact Outline

• -40°C to +120°C Operating Temperature

• Weatherproof

APPLICATIONS：

• Industrial Process Control and Monitoring

• Advanced HVAC Systems

• Refrigeration Systems

• Automotive Test Stands

• Off-Road Vehicles

• Pumps and Compressors

• Hydraulic/Pneumatic Systems

• Agriculture Equipment

• Energy Generation and Management

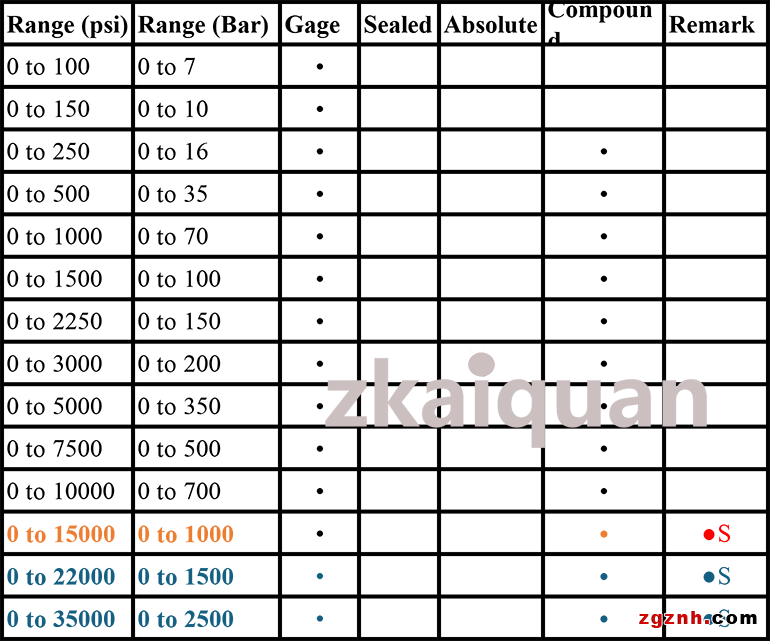

STANDARD RANGES：

Notes: Other intermediate ranges can be customized. For ranges marked with "●S", please consult the factory.

Performance Specifications：

Ambient temperature: 25°C (unless otherwise specified).

For custom configurations, consult factory.

Notes：

• Compensated Temperature: The temperature range over which the product will produce an output proportional to pressure within the specified performance limits.

• Operating Temperature: The temperature range over which the product will produce an output proportional to pressure but may not remain within the specified performance limits.

• Storage Temperature: The temperature range over which the product can be stored safely in occasions without pressure applied or power nput and remains rated performance. Beyond this temperature range may cause permanent damage to the product.

• All configurations are built with supply voltage reverse and output short-circuit protections.

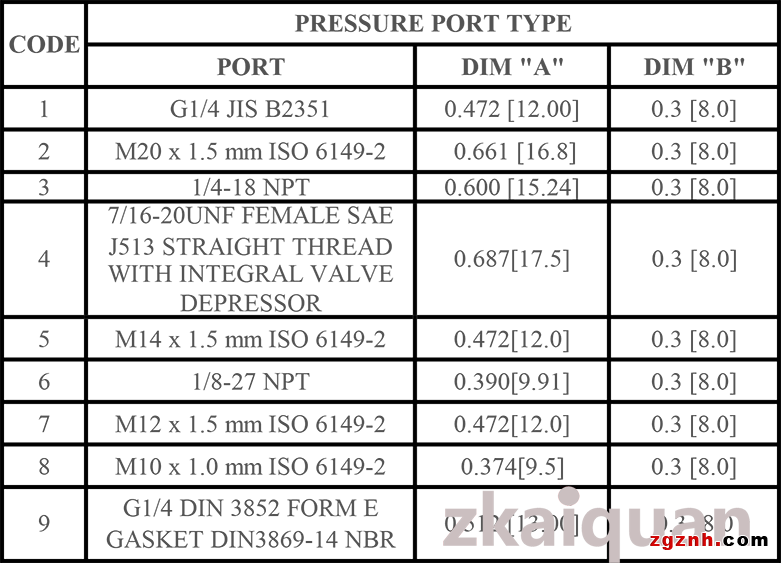

DIMENSIONS [mm]：

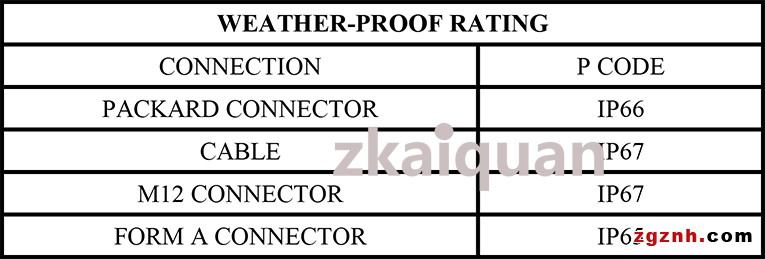

WEATHERPROOF：

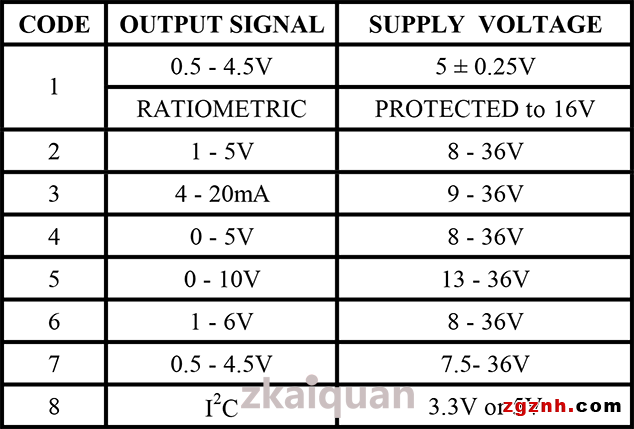

OUTPUTS：

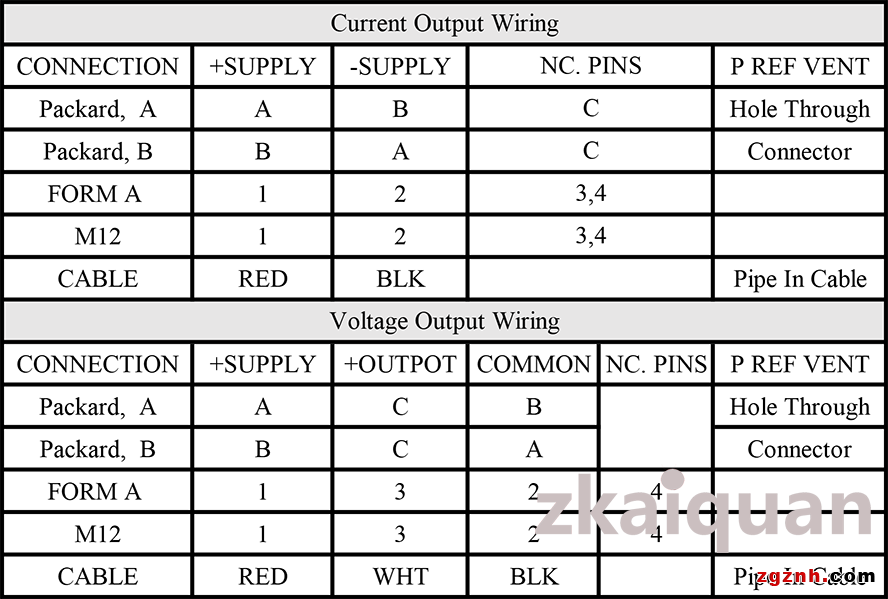

WIRING：

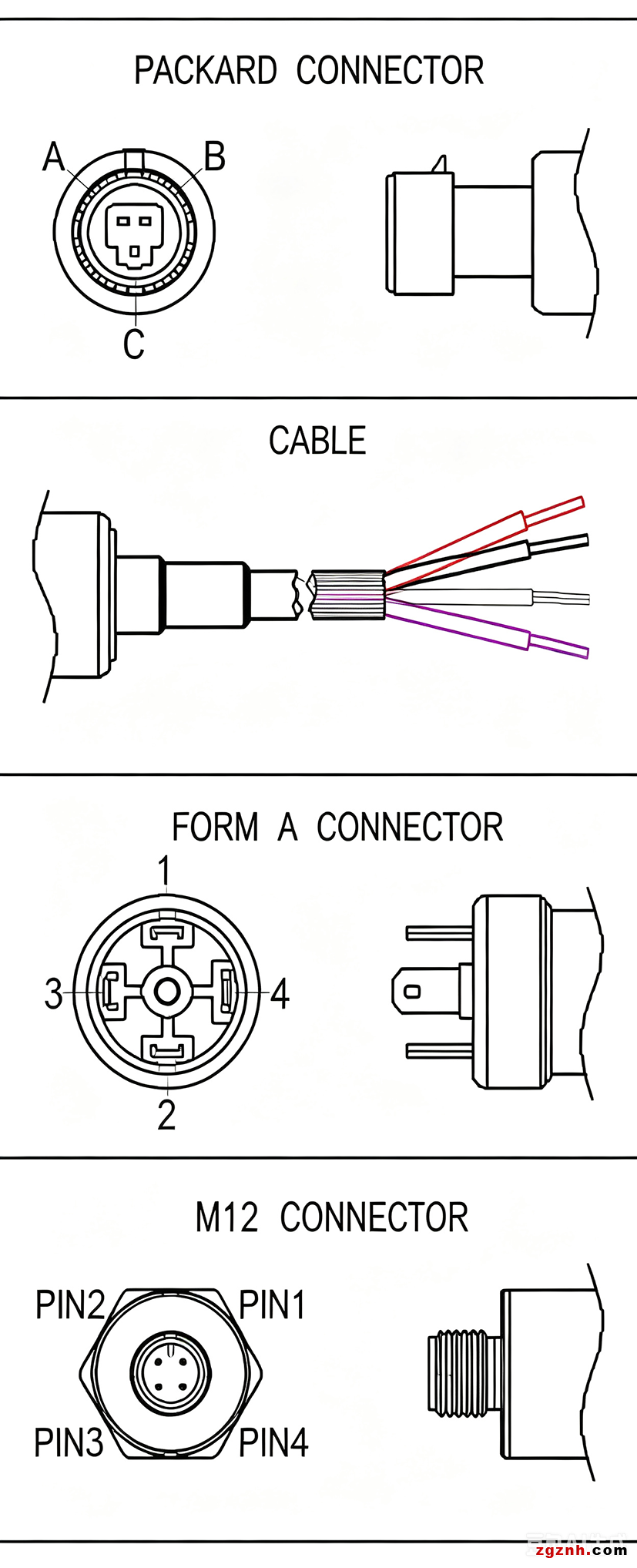

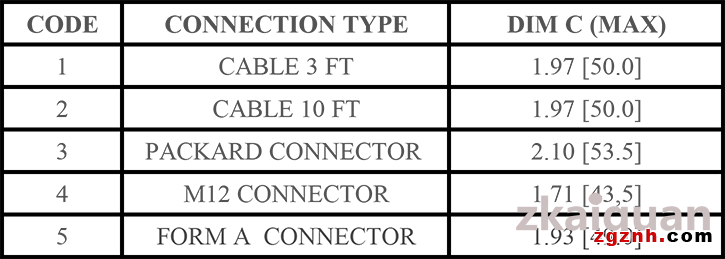

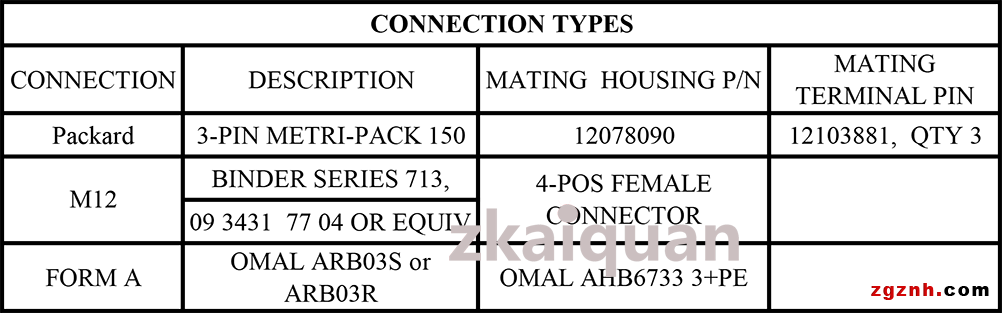

ConNECTION TYPES：

Note:

• Gage pressure transmitters require atmospheric venting on the pressure reference side. Two implementation methods are available: one is to route a vented cable from the transmitter (the cable end shall be placed in a clean and dry area); the other is to adopt customer-supplied mating connector/cable assembly with an internal vent path.

• Vented M12 mating connectors are recommended: Part No. MB12FWAFF04ST-4 for cables with outer diameters ranging from 0.157 in to 0.236 in, and Part No. MB12FWAFF04ST-3 for cables with outer diameters ranging from 0.236 in to 0.315 in.

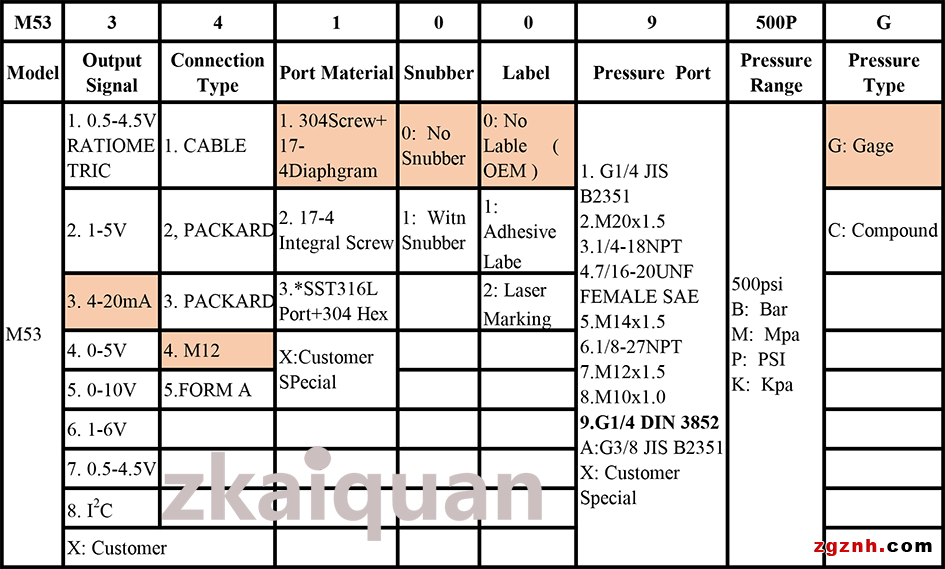

ORDERING INFORMATION:

Note: I2C parameter confirm with factory.
