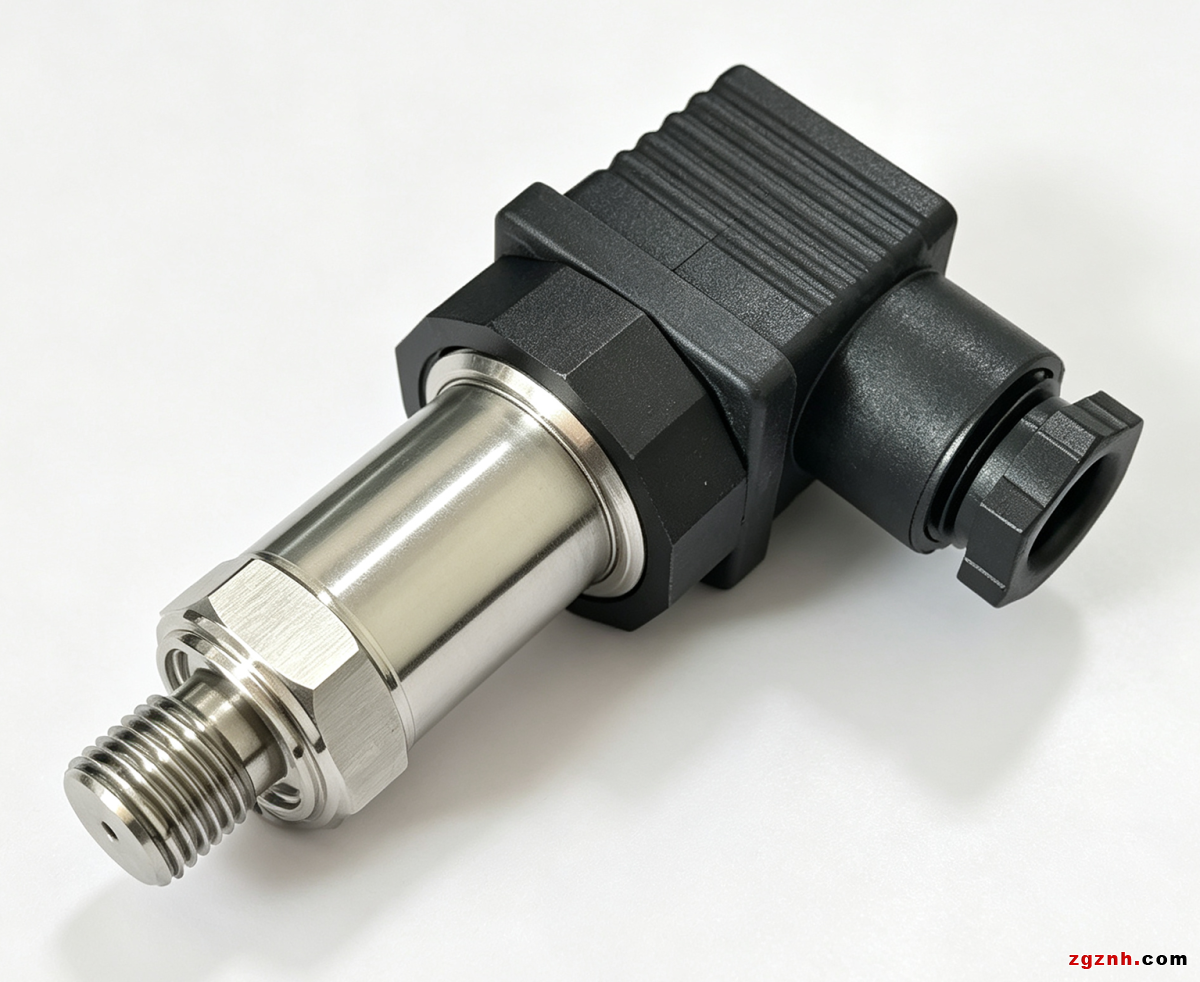

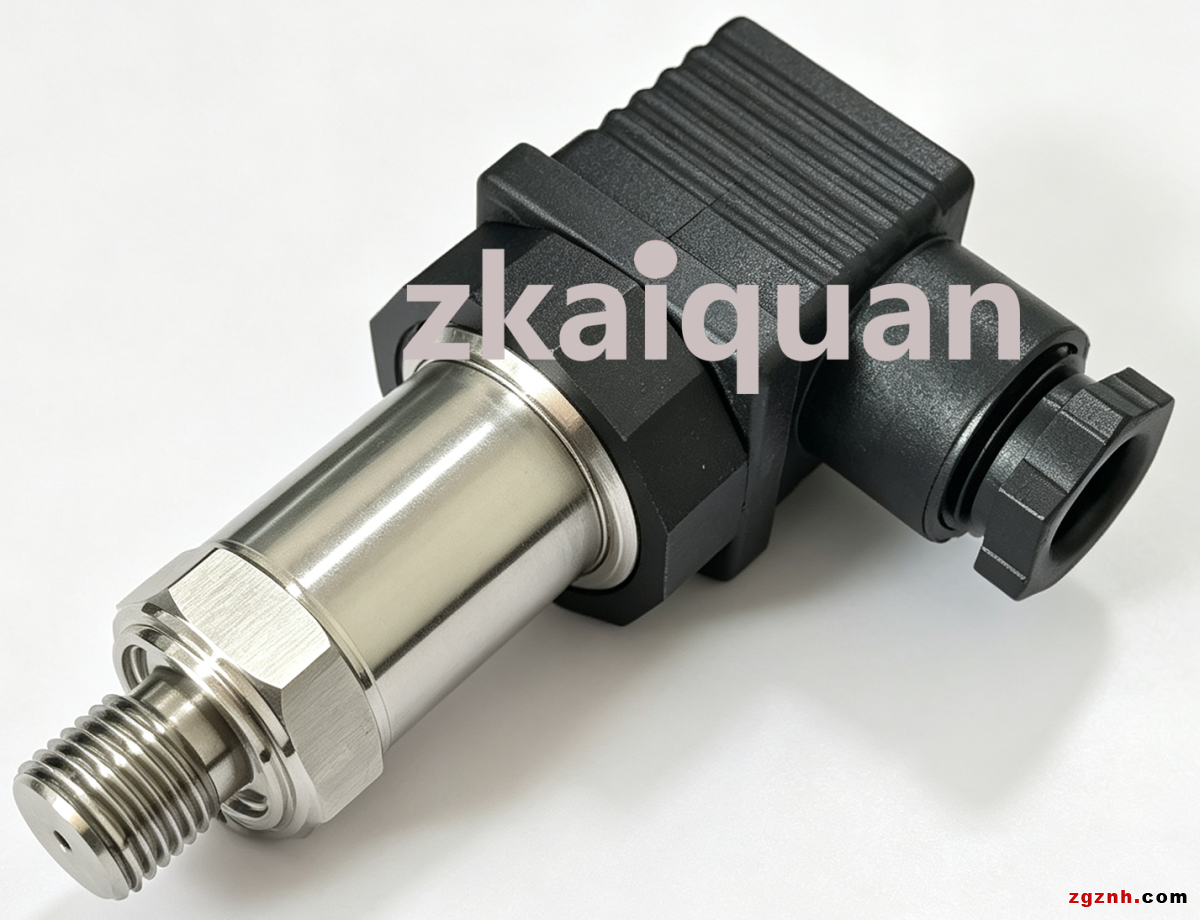

M7300 Series Precision Industrial Pressure Transmitter

M7300 Series Precision Industrial Pressure Transmitter

Prices in the link are for reference only. Contact the staff at the end of the article for exact pricing.

We accept OEM customization as well as ODM development, design and manufacturing services.

Features：

• High accuracy

• Compact and rugged construction

• Multiple pressure ports and signal output options

• Snubber optional

• CE certified and waterproof rated

• Gauge and compound pressure modes available

• High reliability

Specifications：

• Designed for heavy-duty industrial applications

• Integrated pressure cavity, zero leakage

• Reverse polarity protection

• Output short-circuit protection

• Non-linearity accuracy up to ±0.25% FS

• Overall accuracy up to ±1.0% FS

• Compact and robust structure

• Operating temperature: -50°C ~ +120°C

• Compensated temperature range: -20°C ~ +85°C

Applications：

• Industrial pressure control and measurement

• High-end HVAC systems

• Refrigeration systems

• Automated test benches

• Off-road vehicles

• Pumps and compressors

• Hydraulic & pneumatic systems

• Agricultural machinery

• Energy production and management

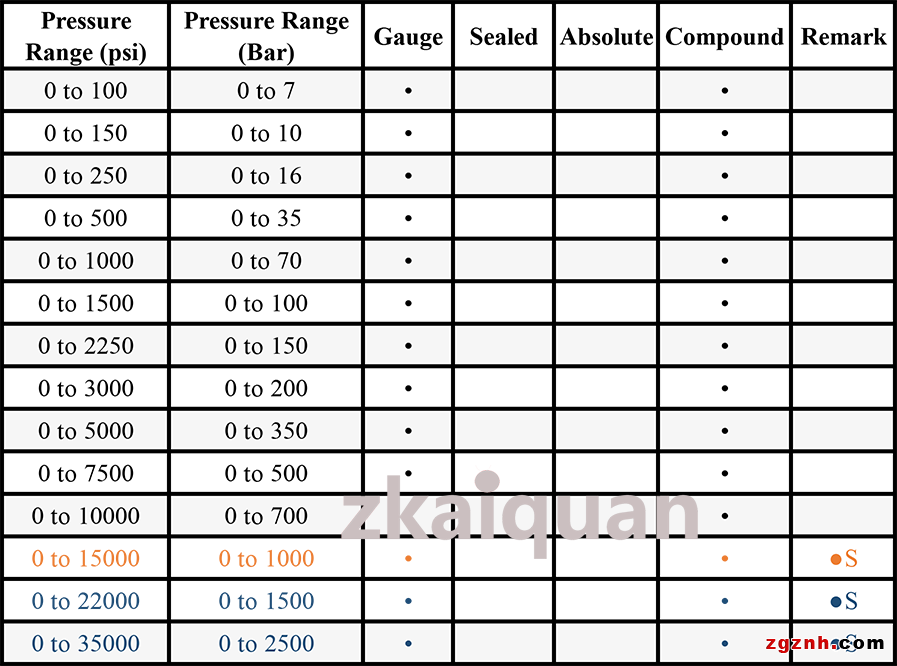

Standard Pressure Ranges：

Note: Custom intermediate pressure ranges are available. For ranges marked with "●S", please consult customer service and technical staff.

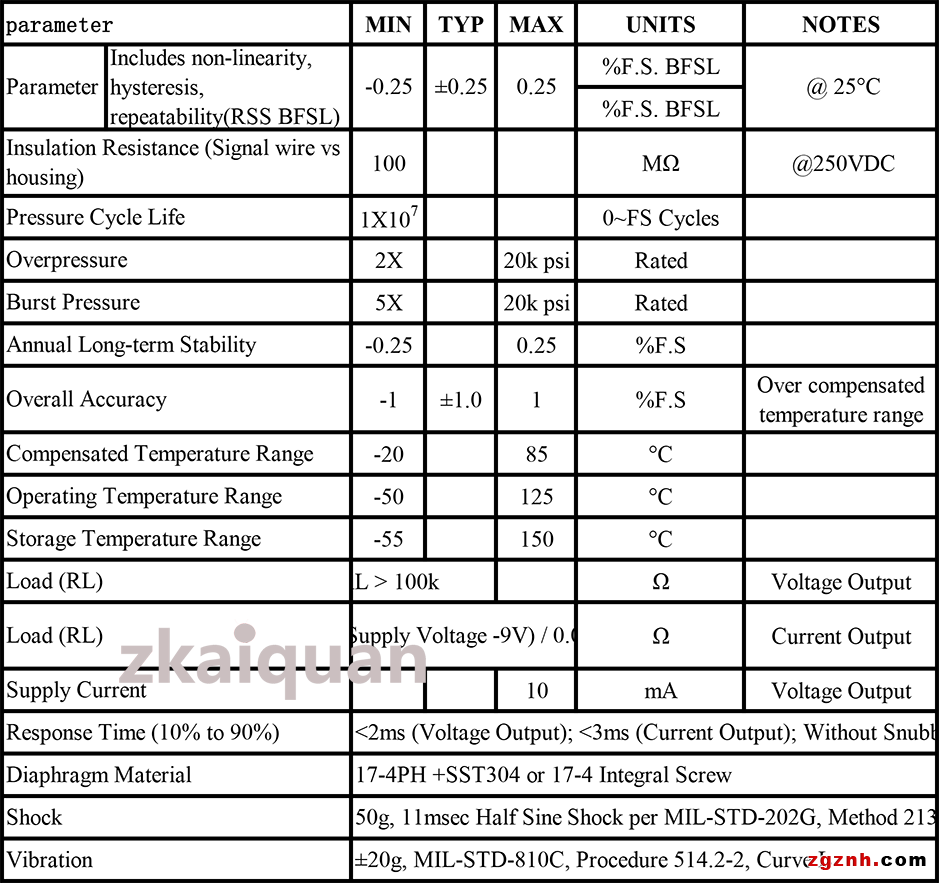

Performance Specifications：

Ambient Temperature: 25°C (unless otherwise specified)

Notes：

• Compensated Temperature: Within this temperature range, the output signal of the product is proportional to pressure, and all performance parameters meet specified limits.

• Operating Temperature: Within this temperature range, the output signal of the product is proportional to pressure, yet performance parameters may exceed specified limits.

• Storage Temperature: The temperature range in which the product can be safely stored with no pressure applied and no power supplied while maintaining rated performance. Temperatures outside this range may cause permanent damage to the product.

• All model configurations are equipped with supply voltage reverse polarity protection and output short-circuit protection circuits.

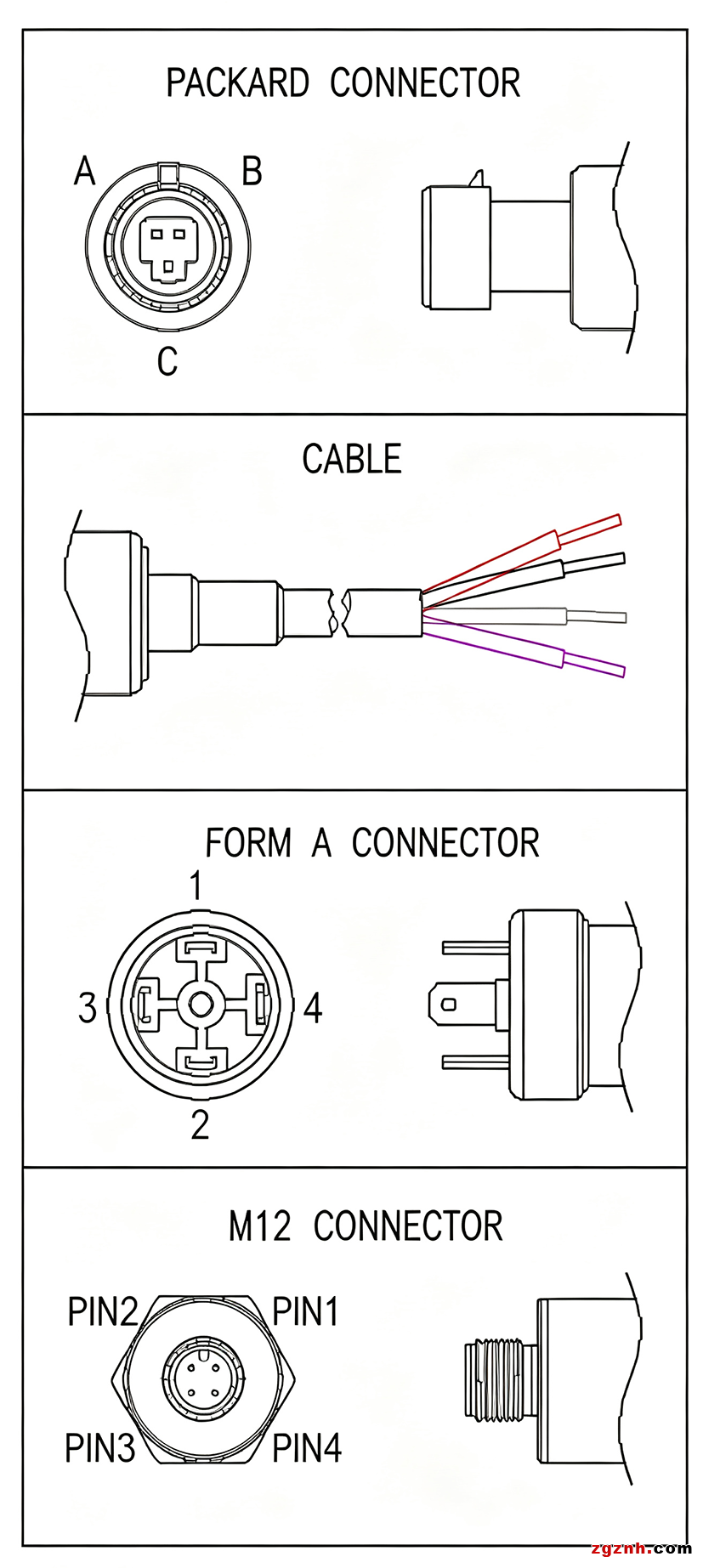

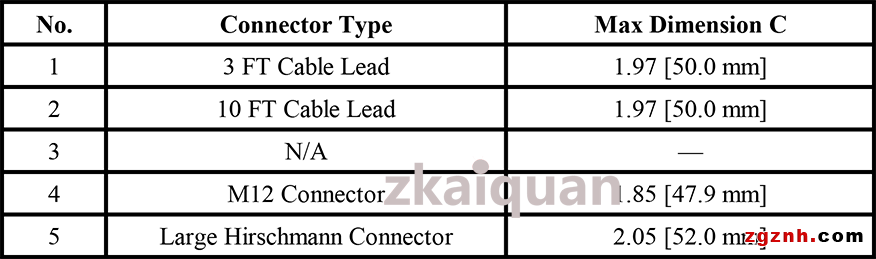

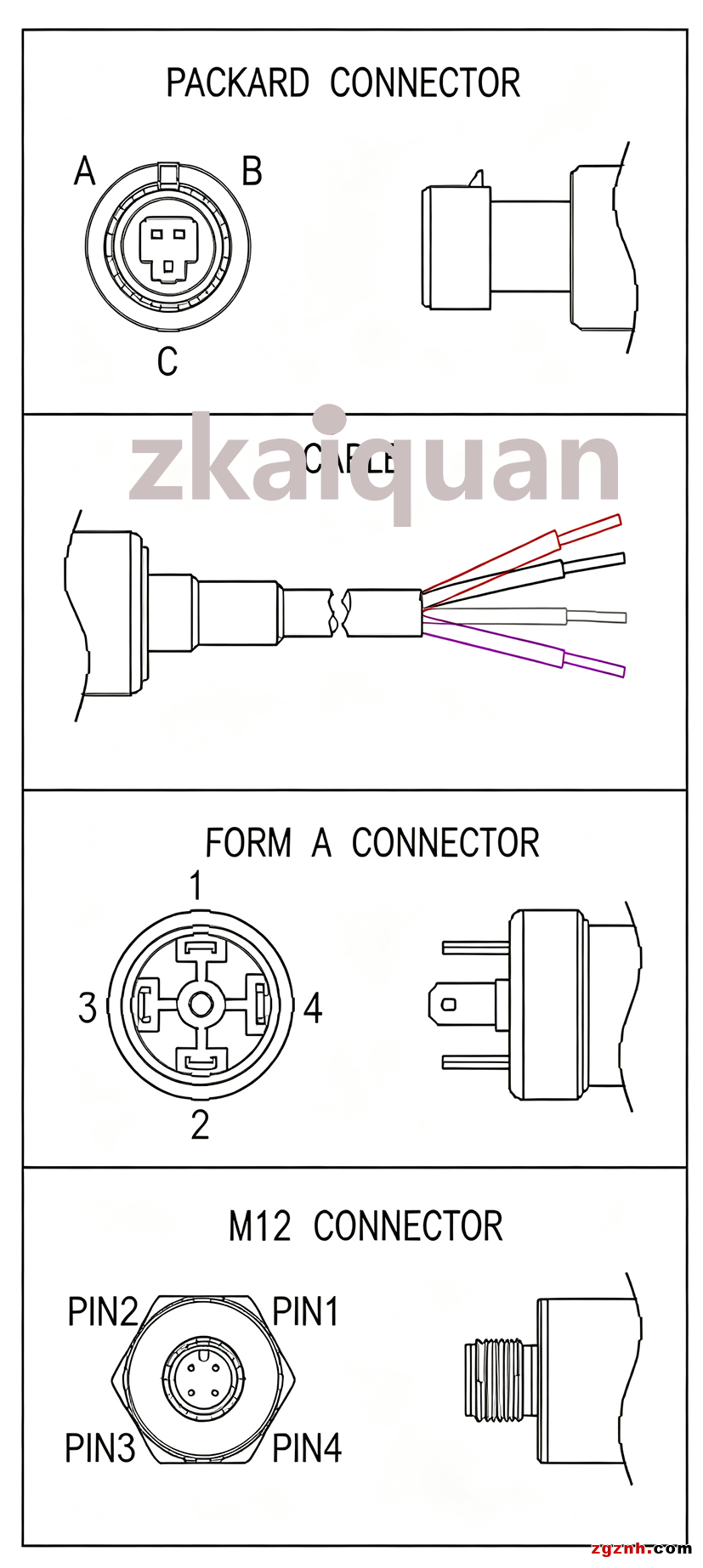

Connector Types：

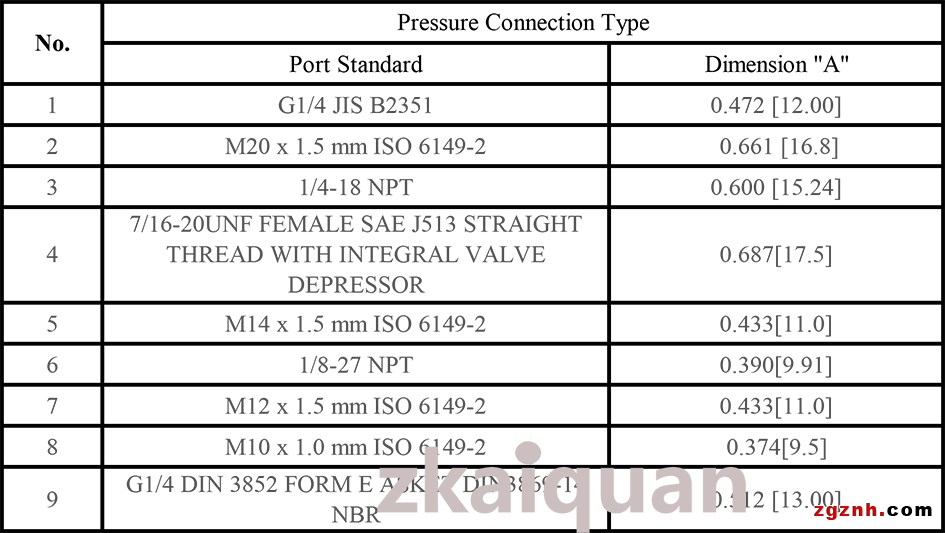

Pressure Ports：

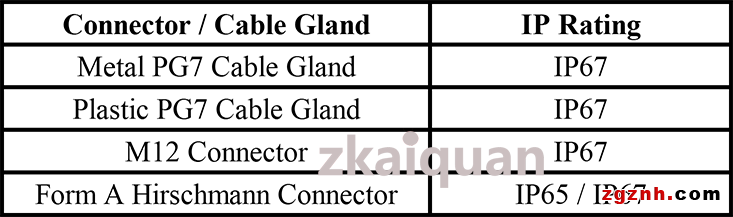

Ingress Protection Rating：

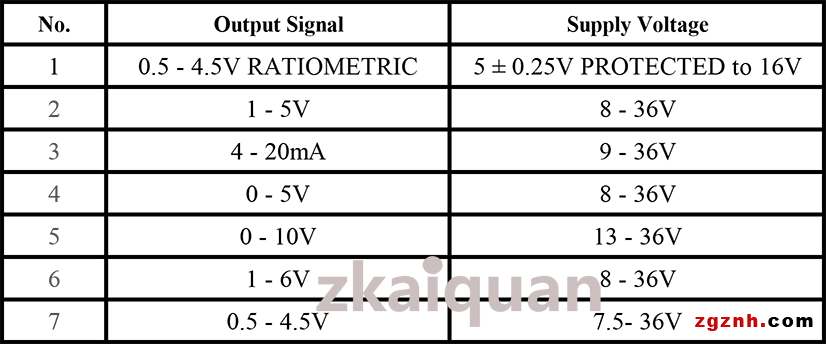

Output Signals & Supply Voltage：

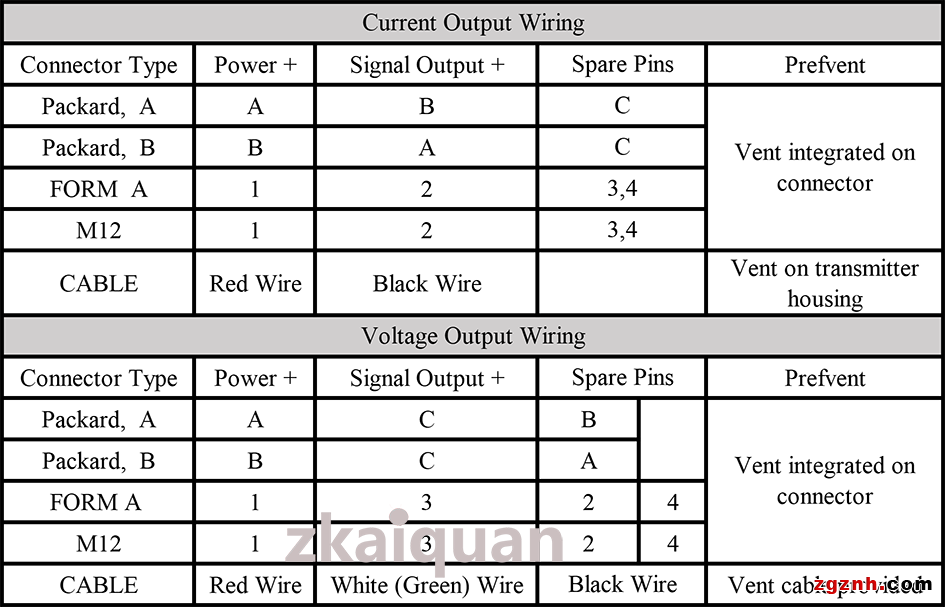

Cable Assignment：

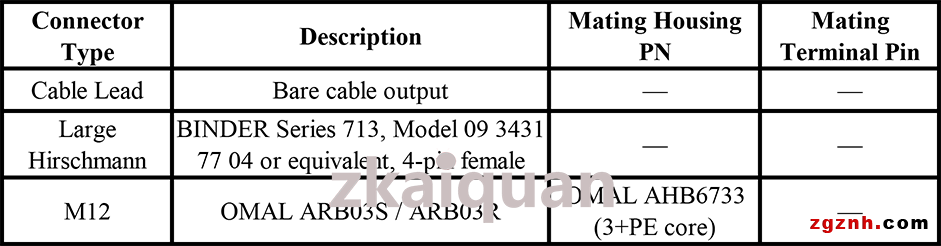

Mating Connector Reference：

Remark: Gauge pressure transmitters require atmospheric reference ventilation. Ventilation can be realized via vent cable (route cable end to clean & dry environment), or by custom connector/cable assemblies with internal vent channels.

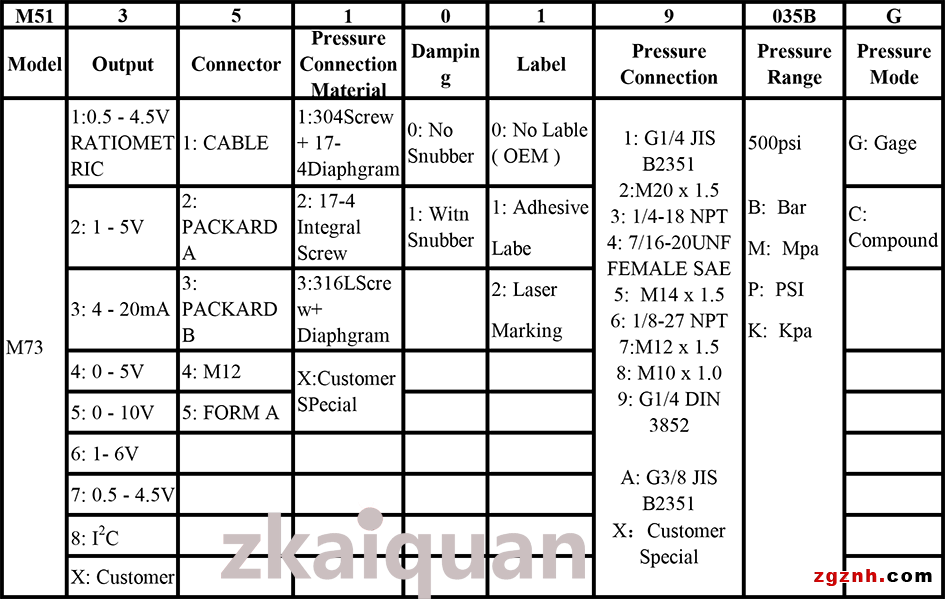

Ordering Code Explanation：
