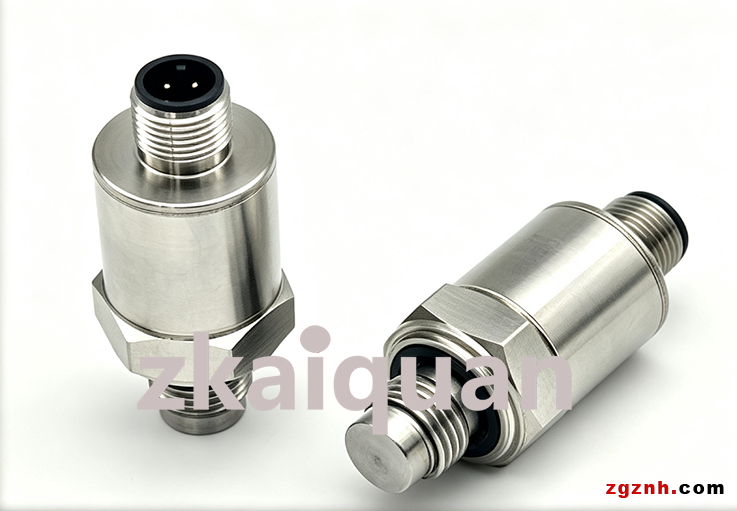

FP5300 Flat Diaphragm Series Industrial Pressure Transmitter

FP5300 Flat Diaphragm Series Industrial Pressure Transmitter

Prices in the link are for reference only.

Contact the staff at the end of the article for exact pricing.

We accept OEM customization as well as ODM development,

design and manufacturing services.

Advantages:

• High accuracy

• Compact and robust

• Multiple pressure connections and output interfaces

• High response frequency >1 kHz

• Multiple output options: 0~10 VDC, 1~5 VDC and 4~20 mA

• Digital output: I2C

• Various cable outlet styles

Features:

• Compact size, flush diaphragm design, high shock resistance

• Pressure range up to 10000 psi

• Multiple pressure connections available

• Non-linearity accuracy up to ±0.5%

• Total accuracy up to ±1.0%

• Compensated temperature range: -10℃ ~ +70℃

• Operating temperature range: -40℃ ~ +120℃

Application Range：

• Environmental protection, chemical industry, coatings and polyurethane equipment

• Pressure control for food and pharmaceutical equipment

• Paint testing systems

• Slurry, mud pumps, coal slurry, pulp, crude oil, asphalt, etc.

• Oilfield drilling, well logging, mud logging, offshore oil production platforms

• Oil well measuring instruments

• Other industrial sites requiring anti-clogging performance and resistance to strong vibration and shock

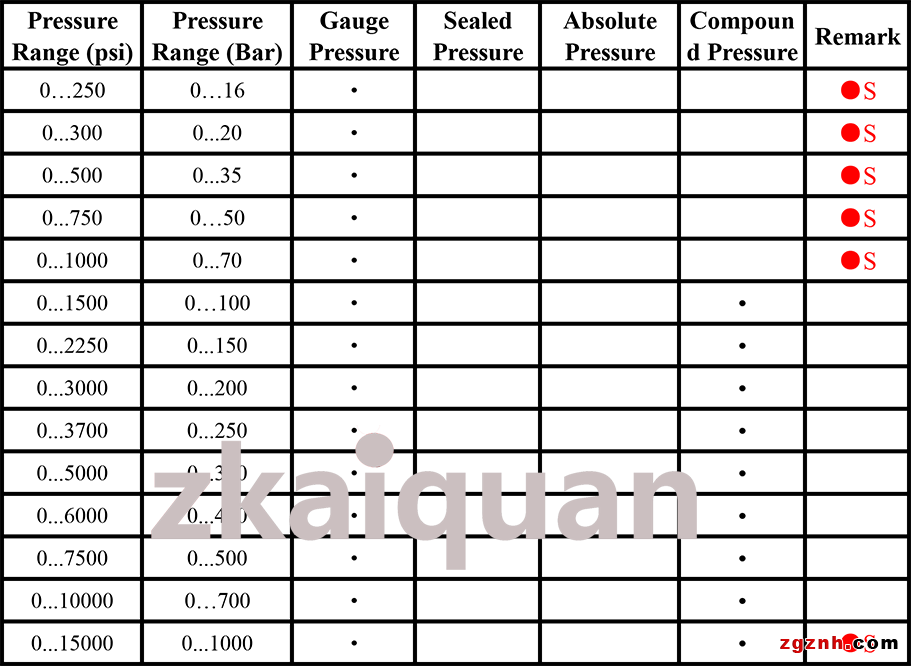

Standard Pressure Specifications：

Notes: Other intermediate ranges can be customized. For ranges marked with "●S", please consult the factory.

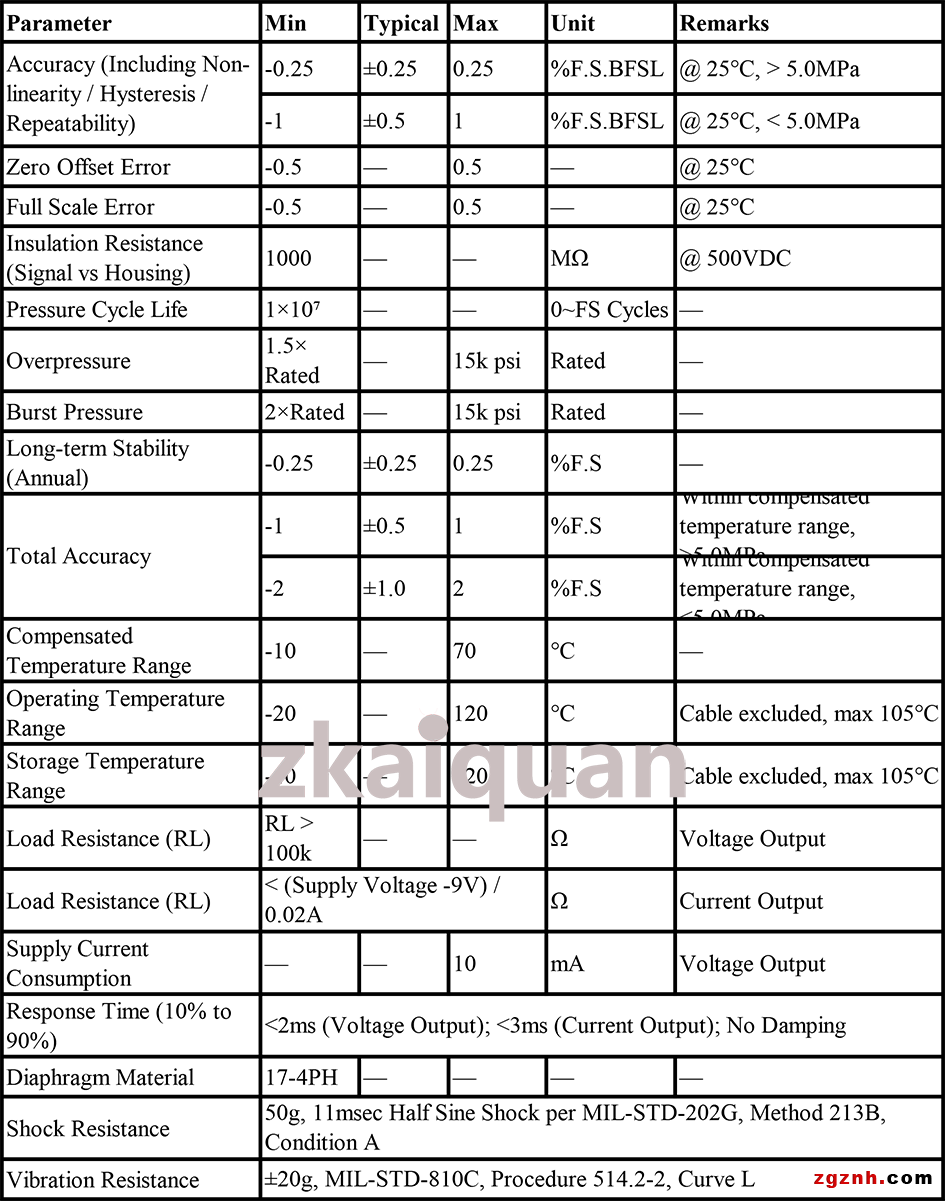

Performance Specifications：

Ambient temperature: 25°C (unless otherwise specified).

Definitions：

1. Compensated Temperature: Temperature range where transmitter output is proportional to applied pressure and performance meets specified tolerances.

2. Operating Temperature: Temperature range where output is proportional to pressure, but performance may exceed specified tolerance limits.

3. Storage Temperature: Safe storage temperature range without pressure or power supply, maintaining rated performance. Permanent damage may occur beyond this range.

4. All versions feature reverse power polarity protection and output short-circuit protection.

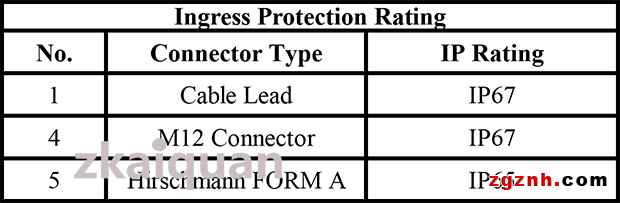

Ingress Protection Rating:

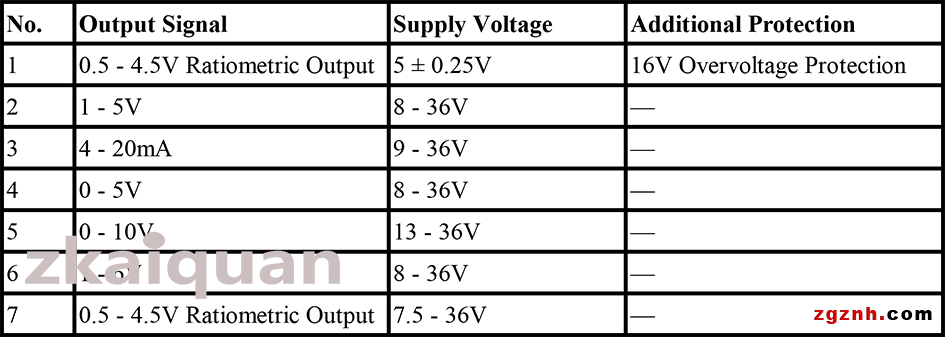

Output Signals：

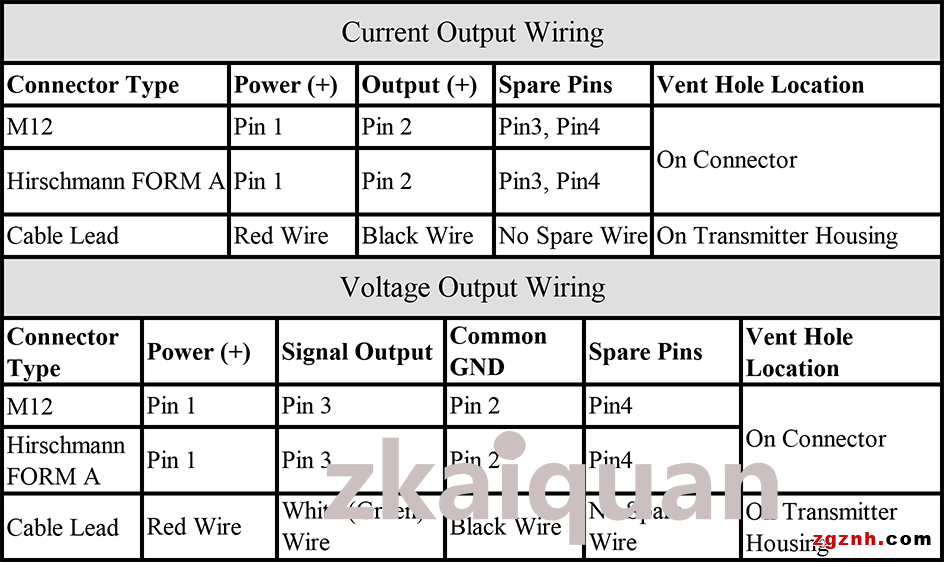

Wiring Definition：

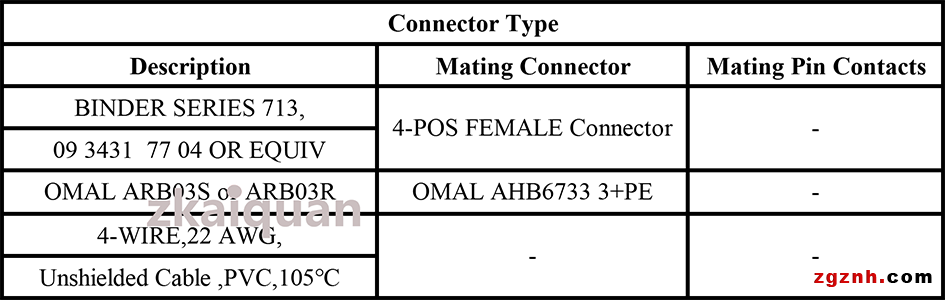

Connector：

Vent Hole Note

For gauge pressure transmitters with low pressure ranges, the reference side must be vented to atmosphere via internal air passage inside the connector/cable assembly or vent hole on housing. Transmitters equipped with vent hole carry IP65 protection rating.

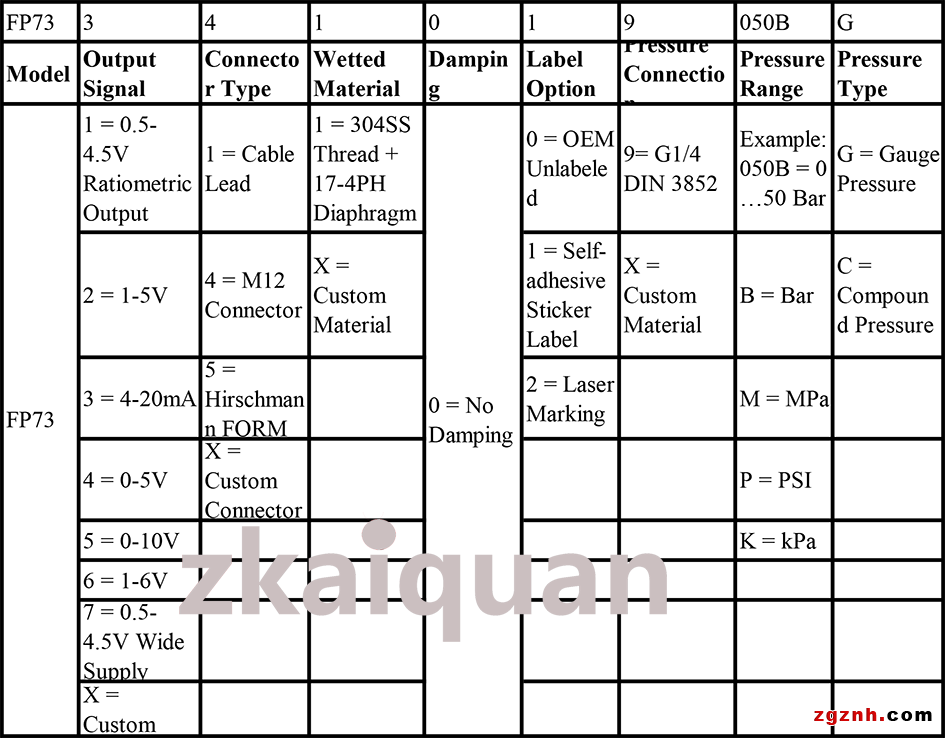

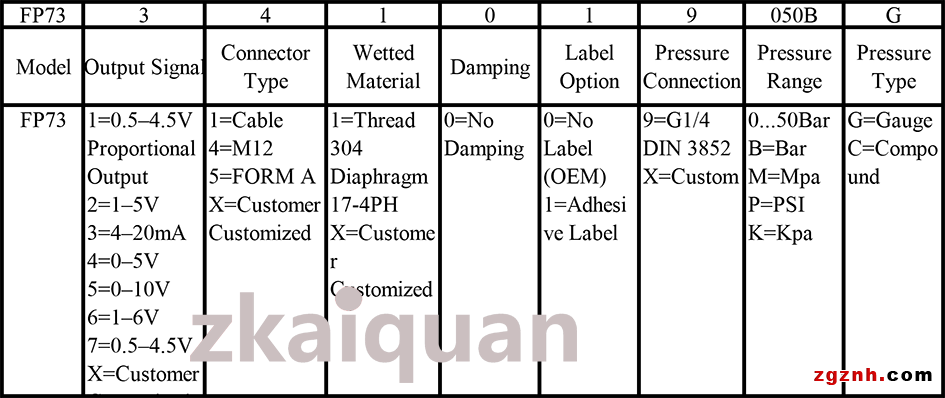

 Ordering Code Explanation：

Note: Please contact customer service for shielded cables or other special connector requirements.
