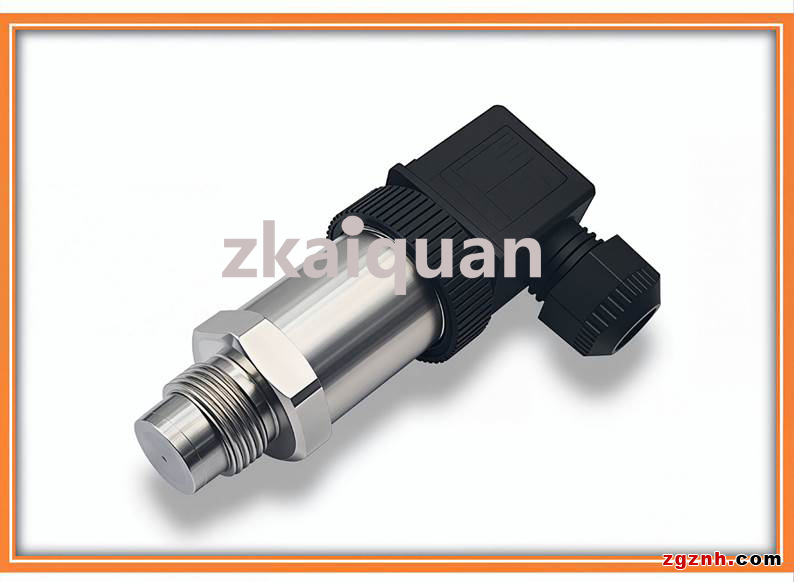

Advantages:
• High accuracy
• Compact and robust
• Multiple pressure connections and output interfaces
• High response frequency >1 kHz
• Multiple output options: 0~10 VDC, 1~5 VDC and 4~20 mA
• Digital output: I2C
• Various cable outlet styles
Features:
• Heavy-duty flat diaphragm, shock resistant
• Pressure range up to 10000 psi
• Multiple pressure connections available
• Non-linearity accuracy up to ±0.5%
• Total accuracy up to ±1.0%
• Compensated temperature: -20℃ … +85℃
• Operating temperature: -40℃ … +120℃
Application Range：
• Environmental protection, chemical industry, coatings and polyurethane equipment
• Pressure control for food and pharmaceutical equipment
• Paint testing systems
• Slurry, mud pumps, coal slurry, pulp, crude oil, asphalt, etc.
• Oilfield drilling, well logging, mud logging, offshore oil production platforms
• Oil well measuring instruments
• Other industrial sites requiring anti-clogging performance and resistance to strong vibration and shock
Standard Pressure Specifications：
Pressure Range (psi) | Pressure Range (Bar) | Gauge Pressure | Sealed Pressure | Absolute Pressure | Compound Pressure | Remark |
0…75 | 0…5 | • | ●S | |||
0...150 | 0...10 | • | ●S | |||
0...250 | 0...16 | • | ●S | |||
0...300 | 0…20 | • | ●S | |||
0...500 | 0...35 | • | ●S | |||
0...750 | 0…50 | • | • | ●S | ||
0...1000 | 0...70 | • | • | ●S | ||
0...1500 | 0...100 | • | • | |||
0...2250 | 0...150 | • | • | |||
0...3000 | 0...200 | • | • | |||
0...3700 | 0...250 | • | • | |||
0...5000 | 0...350 | • | • | |||
0...6000 | 0…400 | • | • | |||
0...7500 | 0...500 | • | • | |||
0...10000 | 0...700 | • | • | |||
0...15000 | 0...1000 | • | • | ●S | ||
0...22000 | 0...1500 | • | • | ●S |
Notes: Other intermediate ranges can be customized. For ranges marked with "●S", please consult the factory.
Performance Specifications：
Ambient temperature: 25°C (unless otherwise specified).
Parameter | Min | Typical | Max | Unit | Remarks |
Accuracy (Including Non-linearity / Hysteresis / Repeatability) | -0.25 | ±0.25 | 0.25 | %F.S.BFSL | @ 25°C, > 5.0MPa |
-1.0 | ±0.5 | 1.00 | %F.S.BFSL | @ 25°C, < 5.0MPa | |
Zero Offset Error | -0.5 | — | 0.5 | — | @ 25°C |
Full Scale Error | -0.5 | — | 0.5 | — | @ 25°C |
Insulation Resistance (Signal vs Housing) | 1000 | — | — | MΩ | @ 500VDC |
Pressure Cycle Life | 1×10⁷ | — | — | 0~FS Cycles | — |
Overpressure | 1.5×Rated | — | 15k psi | Rated | — |
Burst Pressure | 2×Rated | — | 15k psi | Rated | — |
Long-term Stability (Annual) | -0.25 | ±0.25 | 0.25 | %F.S | — |
Total Accuracy | -1.0 | ±0.5 | 1.0 | %F.S | Within compensated temperature range, >5.0MPa |
-2.0 | ±1.0 | 2.0 | %F.S | Within compensated temperature range, <5.0MPa | |
Compensated Temperature Range | -10 | — | 70 | °C | — |
Operating Temperature Range | -20 | — | 120 | °C | Cable excluded, max 105°C |
Storage Temperature Range | -40 | — | 120 | °C | Cable excluded, max 105°C |
Load Resistance (RL) | RL > 100k | — | — | Ω | Voltage Output |
Load Resistance (RL) | < (Supply Voltage -9V) / 0.02A | Ω | Current Output | ||
Supply Current Consumption | — | — | 10 | mA | Voltage Output |
Response Time (10% to 90%) | <2ms (Voltage Output); <3ms (Current Output); No Damping | ||||
Diaphragm Material | 17-4PH | — | — | — | — |
Shock Resistance | 50g, 11msec Half Sine Shock per MIL-STD-202G, Method 213B, Condition A | ||||
Vibration Resistance | ±20g, MIL-STD-810C, Procedure 514.2-2, Curve L | ||||
Definitions：
1. Compensated Temperature: Temperature range where transmitter output is proportional to applied pressure and performance meets specified tolerances.
2. Operating Temperature: Temperature range where output is proportional to pressure, but performance may exceed specified tolerance limits.
3. Storage Temperature: Safe storage temperature range without pressure or power supply, maintaining rated performance. Permanent damage may occur beyond this range.
4. All versions feature reverse power polarity protection and output short-circuit protection.

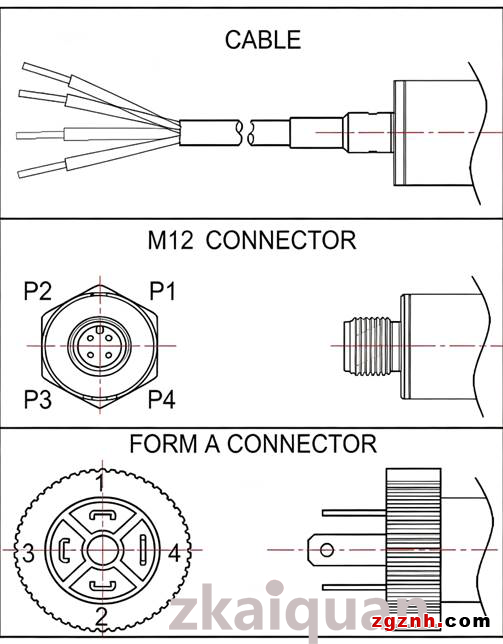

Connector Types：
No. | Connector Type | Max Dimension C (mm / inch) |
1 | 1m Cable Lead | 50.0 / 1.97 |
4 | M12 Connector | 47.9 / 1.85 |
5 | Hirschmann FORM A | 52.0 / 2.05 |

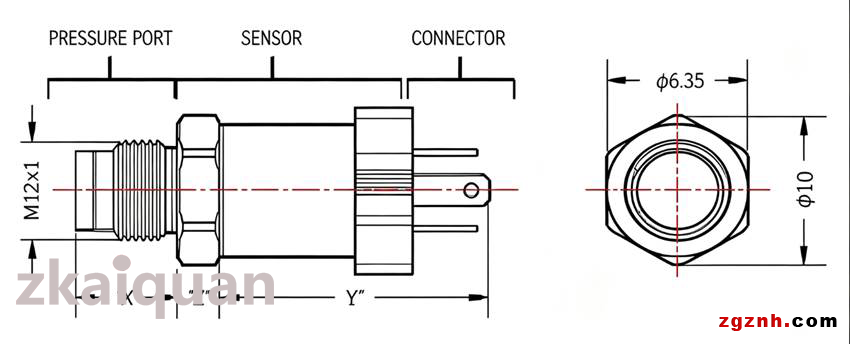

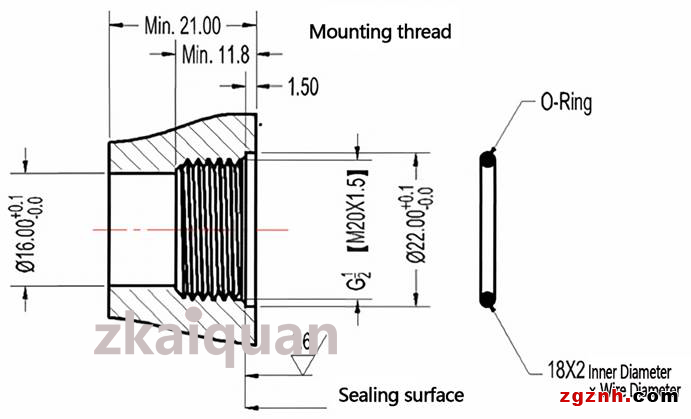

Pressure Connection：
No. | Pressure Connection Type | ||
Connection Thread | Dimension A (mm / inch) | Dimension B (mm / inch) | |
2 | M20 x 1.5 mm ISO 6149-2 | 16.8 / 0.661 | 8.0 / 0.3 |
A | G1/2 | 20.0 / 0.787 | 8.0 / 0.315 |
X | Custom Thread | To Be /confirm/ied | To Be /confirm/ied |
Ingress Protection Rating:
Ingress Protection Rating | ||
No. | Connector Type | IP Rating |
1 | Cable Lead | IP67 |
4 | M12 Connector | IP67 |
5 | Hirschmann FORM A | IP65 |
Output Signals：
No. | Output Signal | Supply Voltage | Additional Protection |
1 | 0.5 - 4.5V Ratiometric Output | 5 ± 0.25V | 16V Overvoltage Protection |
2 | 1 - 5V | 8 - 36V | — |
3 | 4 - 20mA | 9 - 36V | — |
4 | 0 - 5V | 8 - 36V | — |
5 | 0 - 10V | 13 - 36V | — |
6 | 1 - 6V | 8 - 36V | — |
7 | 0.5 - 4.5V Ratiometric Output | 7.5 - 36V | — |
Wiring Definition：
Current Output Wiring | |||||||||
Connector Type | Power (+) | Output (+) | Spare Pins | Vent Hole Location | |||||
M12 | Pin 1 | Pin 2 | Pin3, Pin4 | On Connector | |||||
Hirschmann FORM A | Pin 1 | Pin 2 | Pin3, Pin4 | ||||||
Cable Lead | Red Wire | Black Wire | No Spare Wire | On Transmitter Housing | |||||
Voltage Output Wiring | |||||||||
Connector Type | Power (+) | Signal Output | Common GND | Spare Pins | Vent Hole Location | ||||
M12 | Pin 1 | Pin 3 | Pin 2 | Pin4 | On Connector | ||||
Hirschmann FORM A | Pin 1 | Pin 3 | Pin 2 | Pin4 | |||||
Cable Lead | Red Wire | White (Green) Wire | Black Wire | No Spare Wire | On Transmitter Housing | ||||
Connector：
Connector Type | |||
Description | Mating Connector | Mating Pin Contacts | |
BINDER SERIES 713, | 4-POS FEMALE Connector | - | |
OMAL ARB03S or ARB03R | OMAL AHB6733 3+PE | - | |
4-WIRE,22 AWG, | - | - | |
Vent Hole Note
For gauge pressure transmitters with low pressure ranges, the reference side must be vented to atmosphere via internal air passage inside the connector/cable assembly or vent hole on housing. Transmitters equipped with vent hole carry IP65 protection rating.
Ordering Code Explanation：
FP51 | 3 | 5 | 1 | 0 | 1 | 9 | 050B | G |
Model | Output Signal | Connector Type | Wetted Material | Damping | Label Option | Pressure Connection | Pressure Range | Pressure Type |
FP51 (base Model) | 1 = 0.5-4.5V Ratiometric Output | 1 = Cable Lead | 1 = 304SS Thread + 17-4PH Diaphragm | 0 = No Damping | 0 = OEM Unlabeled | 2 = M20 x 1.5 | Example: 050B = 0…50 Bar | G = Gauge Pressure |
Note: Please contact customer service for shielded cables or other special connector requirements.
